RC4WD
K44 Ultimate Scale Cast FRONT Axle LEFT PUMPKIN offset Z-A0140 RC4WD 2.67:1 TF2
(No reviews yet)
Write a Review
- SKU:
- Z-A0140
- UPC:
- 639302606919
On Sale
Description
Additional Information -

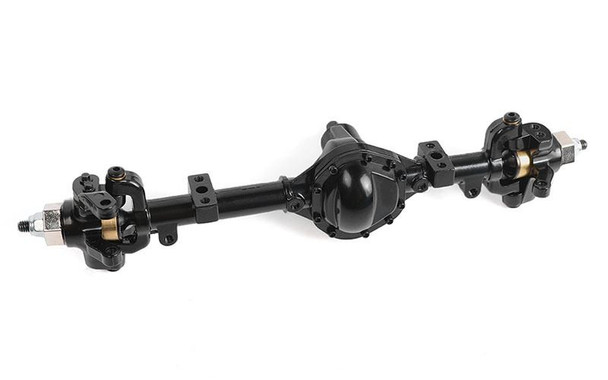

K44 Ultimate Scale Cast Front Axle (Left Pumpkin)
Specifications:
- Die Cast Zinc Alloy Housing
- Black Powder Coating
- Removable Diff Cover
- Hex Thickness: 6mm
- 12mm Wheel Hex
- 5mm Axle Output Shaft
- Gear Ratio: 2.67 : 1
- Designed and Manufactured by RC4WD
- Designed for 1/10 Trucks
- Hex to Hex Width: 6.97in / 177mm
- Pin to Pin Width: 6.46in / 164mm
- Pumpkin Height: 1.37in / 34.8mm
- Weight: 8.53oz / 242g
Shown installed on RC4WD Cross Country Off-Road RTR W/ 1/10 Black Rock Four Door Body Set (Z-RTR0046) with Chubby Mini 3 TON Scale Jack Stands (Z-S0731) for example (Not Included)
What's Included:
- 1x K44 Ultimate Scale Cast Front Axle (Left Pumpkin)
Required Parts:
- K44 Cast Steering Link Set (Z-S1685)
Replacement Hardware:
- 10x M1.6 x 4mm SHCS (Black) (Z-S1232)
- 4x M3 x 8mm BHCS (Black) (Z-S0652)
- 6x Metal Shield Bearing 5x11x4mm (Z-S0683)
- 2x Metal Shield Bearing 5x8x2.5mm (Z-S0684)
- 2x RC4WD 12mm Axle Wheel Hexes (Z-S0239)
- 2x Nylock Nuts M4 (Silver) (Z-S1265)
- 1x M4 E-clip (Black) (Z-S0919)
Optional Parts:
- Ultimate Axle 4 Link Mount (Z-S0133)
- RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
- Helical Gear Set for 1/10 Yota Axle (Z-G0059)
- (Z-S0027)
- RC4WD ARB Diff Cover for K44 Cast Axle (Z-S1839)
- RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847)
- XVD for Cast K44 Front Axle (Z-S1864)
Notes:
- Fits RC4WD Cross Country Off-Road RTR W/ 1/10 Black Rock Four Door Body Set (Z-RTR0046)
- Fits RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler (Z-RTR0034)
- Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
- Fits RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Limited Edition) (Z-RTR0035)
- Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
- Fits RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base (Z-K0059)
- Fits RC4WD Trail Finder 2 Truck Kit (Z-K0054)
- Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
- Fits Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
Related Products
Related Products
On Sale

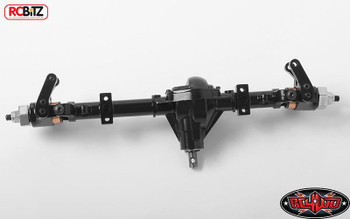

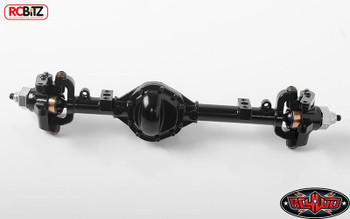

K44 Ultimate Scale Cast FRONT Axle D90 G2 TF2 RC4WD Z-A0101 1/10 Detailed METAL
RC4WD
MSRP:
$96.75
Now:
$91.91
Was:
$96.75
Additional Information - K44 Ultimate Scale Cast Front AxleThis is the best reproduction to date of a scale axle. The K44 Axles have been designed from the ground up with input from some of the to
Z-A0101
On Sale
K44 Ultimate Scale Complete REAR axle RC4WD Z-A0049 RC4WD TF2 G2 option RC Scale
RC4WD
MSRP:
$226.18
Now:
$158.32
Was:
$226.18
Additional Information - K44 Ultimate Scale Rear Axle This is the best reproduction to date on a scale axle. The K44 axles have been designed from the ground up with input from some of the top scale...
Z-A0049
On Sale

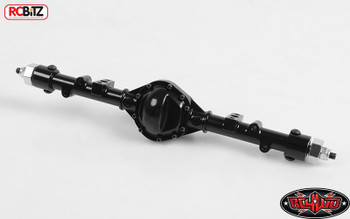

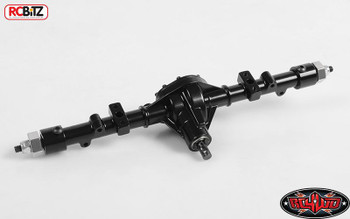

K44 Ultimate Scale Cast REAR Axle D90 G2 TF2 RC4WD Z-A0096 10th Scaler 168mm RC
