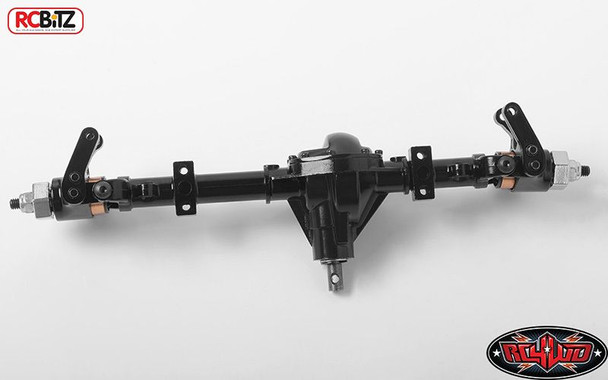

K44 Ultimate Scale Cast Front Axle

This is the best reproduction to date of a scale axle. The K44 Axles have been designed from the ground up with input from some of the top scale builders in the world. With smaller axle tubes, high steer knuckles and many more features never before found on a set of radio control scale axles. RC4WD keeps pushing the limits on scale items and this new axle is a perfect example!



Specifications:
  • Die Cast Zinc Alloy Housing
  • Black Electrophorese
  • Removable Diff Cover
  • Hex Thickness: 6mm
  • 12mm Wheel Hex
  • 5mm Axle Output Shaft
  • Gear Ratio: 2.67 : 1
  • Designed and Manufactured by RC4WD
  • Designed for 1/10 Trucks
  • Hex to Hex Width: 6.97in / 177mm
  • Pin to Pin Width: 6.46in / 164mm
  • Pumpkin Height: 1.37in / 34.86mm
  • Weight: 8.32oz / 236g











Shown installed with RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001) for example (Not Included)






What's Included:
  • 1x K44 Ultimate Scale Cast Front Axle

Rear K44 Axles:
  • K44 Ultimate Scale Cast Rear Axle (Z-A0096)

Required Parts:

  • K44 Cast Steering Link Set (Z-S1685)

Replacement Hardware:
  • 10x M1.6 x 4mm SHCS (Black) (Z-S1232)
  • 4x M3 x 8mm BHCS (Black) (Z-S0652)
  • 2x Metal Shield Bearing 8x12x3.5mm (Z-S0681)
  • 6x Metal Shield Bearing 5x11x4mm (Z-S0683)
  • 2x Metal Shield Bearing 5x8x2.5mm (Z-S0684)
  • 2x RC4WD 12mm Axle Wheel Hexes (Z-S0239)
  • 2x Nylock Nuts M4 (Silver) (Z-S1265)
  • 1x M4 E-clip (Black) (Z-S0919)

Optional Parts:
  • Ultimate Axle 4 Link Mount (Z-S0133)
  • RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
  • Helical Gear Set for 1/10 Yota Axle (Z-G0059)
  • The Ultimate Scale Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)
  • RC4WD ARB Diff Cover for K44 Cast Axle (Z-S1839)
  • RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847)
  • XVD for Cast K44 Front Axle (Z-S1864)

Notes:
  • Fits Gelande II D110 Truck Kit With Hard Body (Z-K0047)
  • Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
  • Fits Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
