Name: RC4WD Baja Designs Arc Series CURVED Light Bar 124mm Z-E0105 inc screws BRIGHT
Brand: RC4WD
SKU: Z-E0105
Price: 58.49 GBP
Availability: InStock

RC4WD Baja Designs Arc Series CURVED Light Bar 124mm Z-E0105 inc screws BRIGHT

(No reviews yet) Write a Review

SKU:

Z-E0105

UPC:

639302593639

Description
0 Reviews

Description

Additional Information -

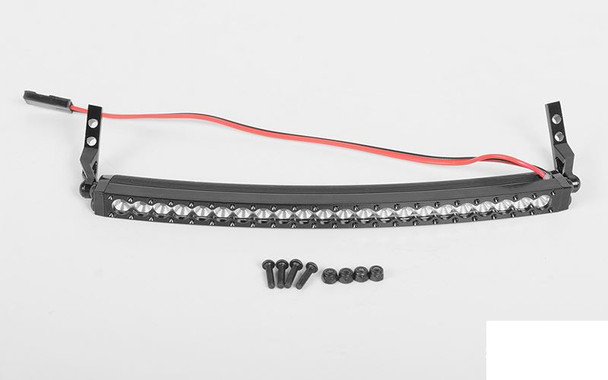

RC4WD Baja Designs Arc Series Light Bar (124mm)

RC4WD has teamed up with Baja Designs to offer this awesome Arc Series Light Bar to the scale community. This is only available from RC4WD and our Dealers. This light bar will be sure to brighten any project.

Specifications:

Cast Molded Housing
Reversible "L" Brackets to Fit Many Applications
Adjustable "L" Brackets for Rotating Light
22 Individual LED Bulbs
Super Bright Lighting
Vented on Side to Dissipate Heat
Capable of 11.1 Volts and 7.4 Volts
Standard Receiver Plug
Connects to Extra Channel on Receiver
2mm Mounting Holes
Overall Length: 5.38in / 136.7mm
Light Bar Width: 5.10in / 129.5mm
Overall Height: 0.62in / 15.6mm
Light Bar Height: 0.31in / 8.0mm
Weight: 1.13oz / 32.1g

Shown installed on RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030) for example (Not Included)

Shown installed on RC4WD Custom Truck with Mojave II Crawler Body for example (Not Included)

What's Included:

1x RC4WD Baja Designs Arc Series Light Bar (124mm)
4x M2 x 8mm Steel Button Head Cap Screws (Black)
4x Nylock Nuts M2 (Black)
1x Baja Designs Decal Sheet

Optional Parts:

RC4WD Strobe Lighting Unit (Z-S1573)
Y Harness with Tamiya Connectors for Light Bars (Z-S1601)
RC4WD Mini ON/OFF Switch for Lighting Unit (Z-E0081)

Replacement Hardware:

Nylock Nuts M2 (Black) (Z-S0906)
Steel Button Head Cap Screws M2 x 8mm (Z-S1810)
Steel Button Head Cap Screws M2 x 6mm (Z-S0933)
Steel Button Head Cap Screws M2.5 x 6mm (Z-S0764)

Notes:

Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Use medium grade thread lock on "L" Bracket Nut to prevent loss and to keep the light in position
Mounting Hardware can be found here. M2 SHCS / M2 BHCS
While the light Bar comes with a standard receiver plug, this is only for ease of use. The receiver will not allow enough power for the light Bar and it will be dim. If you want the light to be bright, you will need to power it directly from your battery or use a BEC to get more power to your receiver.
