RC4WD

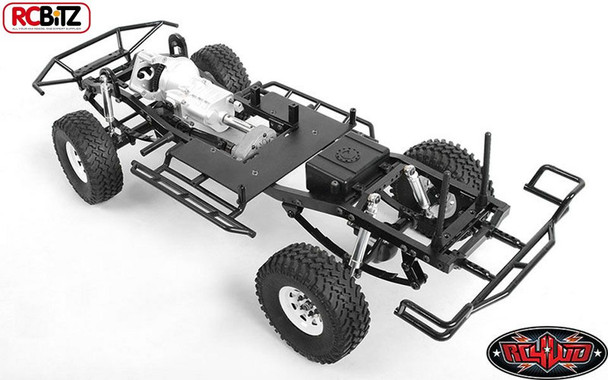

Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2

(1 review) Write a Review
SKU:
Z-K0054
UPC:
639302606018
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
  • Trail Finder 2 Truck Kit RC4WD Z-K0054 for Blazer Body Set TF2 Chassis ONLY TF2
MSRP: £528.49
RRP £448.99
— You save £79.50

Description



Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow, or mud than the Trail Finder 2.
Part scale truck, part adventurer, your TF2 is ready for your mud kicking trail-loving lifestyle!

The TF2 has both detailed styling and aggressive performance.
You will find a balance of capability and performance built into every TF2.
Performance of the TF2 is smooth and with its 2 speed selectable transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout.
The TF2 is truly a work of art in both appearance and performance.

Every TF2 is compatible with a full range of option and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The Trailfinder 2. Your adventure awaits....

Realistic Billet Aluminum Ladder Frame Chassis
2 Speed Remote Selectable Transmission
Center Mounted Realistic 4x4 Transfer Case
Cast Metal Axles with Locked Differentials
True to Scale Leaf Spring Suspension
1.55" Stamped Steel Beadlock Wheels with Lug Nuts
Super Grip High Performance Mud Thrasher Tires
Realistic Tube Bumpers - Rock Rails - Skid Plate
Chassis Mounted Steering Servo
RC4WD Ultimate Scale Shocks Absorbers

Shown installed with Chevrolet Blazer Hard Body Complete Set ( Z-B0092 ) for example (Not Included)



All New Hammer Transfer Case
Ratio - 1.47:1 Gears - Wide 32P steel gears Features - 8 bearings, cast casing, hardened gears

All New R3 2 Speed Transmission
Ratios Pinion/spur 14/64 = 4.57:1 1st gear
3.47:1 2nd gear 1.27:1
Gears - Wide steel 32P, Delrin spur, slipper clutch,
Features - Machined billet aluminum casing, scale looking, Motor mount can be rotated to 10 different positions,
compatible with other brand spurs (Axial, Traxxas, Robinson)

Cast Yota Axles
Ratio: 15/40 = 2.67:1 Width at hex (using 4mm TF2 hexes): 176.5mm

All New Trailfinder 2 Chassis
Features - Billet aluminum constriction Adjustable shock hoops

Driveshafts
High quality plastic material, very durable High quality steel Yokes

Wheels
Name: 1.55 OEM beadlock wheels Hub: 12mm hex Width: 22mm Back spacing: 9mm
Features: Stamped steel, aluminum hub, internal beadlock, very scale looking, 6 bolt pattern,

Bumpers
Tough Armor TF2 Winch front bumper Tough Armor TF2 Rear Bumper Tough Armor TF2 Side Sliders Authentic
looking crawler style tube bumper. Very high quality flexible plastic, very durable, very scale.

TF2 Truck Dimensions
Wheels base: 287mm (11.3")
Width: 215mm (8.5")
Height: 138mm (5.4")
Ground clearance: 57mm (2.5")
Final Drive Ratios: 1st - 62.1:1, 2nd - 22.75:1



DRIVETRAIN

The TF2 includes the new Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same new 32P widened gears for durability.

The most scale accurate axles on the market, the RC4WD Cast Yota axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.

The All New R3 2 speed transmission comes with a fully machined billet aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch. The new designed motor mount is adjustable in 10 positions.

Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.

The Driveshafts for the TF2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.


SUSPENSION

The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance.
Machined from billet aluminum, rebuildable and internally sprung.

The TF2 includes a set of RC4WD White Stamped Steel 1.55 internal beadlock wheels. Super tough paintable white finish,
aluminum internal ring and popular 6 lug design.

The TF2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options.

The All New TF2 Chassis is a machined billet alumi- num ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available soon!

Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.













Shown installed with Chevrolet Blazer Hard Body Complete Set ( Z-B0092 ) for example (Not Included)


What's Included:

  • 1x Trail Finder 2 Truck Kit


This is a kit that requires building time (appro. 2-3 hours) body and electronics.

Required to Complete:

Truck Kit

  • Hex Drivers (1.5mm, 2mm, 2.5mm)
  • Long Nose Pliers
  • Associated Thread Locking Adhesive
  • Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)


Electronics


Suggested Bodies

  • RC4WD Mojave II Body Set for Trail Finder 2 (Primer Gray) ( Z-B0084 )
  • Chevrolet Blazer Hard Body Complete Set ( Z-B0092 )
  • RC4WD Trail Finder 2 RTR w/Mojave II Body ( Z-RTR0024 )
  • Trail Finder 2 Truck Kit w/Mojave II Body ( Z-K0049 )


Replacements Parts:

  • Soft Steel Leaf Spring for Trail Finder 2 ( Z-S0518 )
  • Hammer Transfer Case (1.47/1) ( Z-U0024 )
  • Metal Drive Coupling for Trail Finder 2 ( Z-S0599 )
  • Yota Steering Links for Trail Finder 2 ( Z-S0601 )
  • Mojave Body Hardware Kit ( Z-S0589 )
  • R3 Scale 2 Speed Transmission ( Z-U0025 )
  • 14t 32p Hardened Steel Pinion Gear ( Z-S0430 )
  • Fuel Cell Radio Box ( Z-S0592 )
  • Trail Finder 2 Plastic Body Posts ( Z-B0029 )
  • Leaf Spring Shackles & Mounts Kit ( Z-S0047 )
  • RC4WD Marlin Crawlers Front Plastic Tube Bumper for Trail Finder 2 ( Z-S0594 )
  • RC4WD Marlin Crawlers Rear Plastic Tube Bumper for Trail Finder 2 ( Z-S0595 )
  • M3 Offset Short Plastic Rod End (20x) ( Z-S0401 )
  • M3 Mini Plastic Rod End (20x) ( Z-S0398 )
  • Stamped Steel 1.55" Stock White Beadlock Wheel ( Z-W0035 )
  • Yota Ultimate Scale Cast Axle (Front) ( Z-A0058 )
  • Yota Ultimate Scale Cast Straight Axle (Rear) ( Z-A0061 )
  • RC4WD Marlin Crawlers Side Plastic Sliders for Trail Finder 2 ( Z-S0596 )
  • Scale Nylon Long Punisher Shaft (104mm-150mm) 5mm Hole ( Z-S0582 )
  • Scale Nylon Short Punisher Shaft (89mm-120mm) 5mm Hole ( Z-S0583 )
  • Trail Finder 2 Bumper Mounts ( Z-S0593 )
  • Aluminum Driveshaft Locking Ring for Scale Nylon Punisher Shafts ( Z-S0443 )
  • Mud Thrashers 1.55" Scale Tires ( Z-T0100 )
  • The Ultimate Scale Shocks 90mm (Silver) ( Z-D0001 )
  • The Ultimate Scale Shocks 70mm (Silver) ( Z-D0004 )


Optional Parts:

  • RC4WD 1/10 V8 Scale Engine ( Z-S1043 )
  • RC4WD R4 Ultimate Scale Single Speed Transmission ( Z-U0031 )
  • Trail Finder 2 V8 Engine Mounts ( Z-S1239 )
  • RC4WD Skid Plate for Trail Finder 2 V8/R4 ( Z-S1488 )
  • R3 Scale 2 Speed Transmission ( Z-U0025 )
  • R3 Tranny Mounts For Trail Finder 2 ( Z-S0677 )
  • TF2 Long Drive Shaft Coupling for R3 Single Speed ( Z-S0898 )
  • Triton Transfer Case (1:1) ( Z-U0029 )
  •  XR4 XR3 2.4Ghz 4-Channel Blue Receiver ( Z-R0008 )
  • Outcry Crawler Dual Motor ESC w. Fan & TurboBEC ( Z-E0008 )
  • RC4WD Outcry Crawler Water-Resistant Brushed Speed Control ESC Unit ( Z-E0068 )
  • RC4WD 1/10 High Performance SMD LED Light Bar (50mm/2") ( Z-E0057 )
  • RC4WD 1/10 High Performance SMD LED Light Bar (100mm/4") ( Z-E0056 )
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (40mm/1.5") ( Z-E0054 )
  • RC4WD 1/10 High Performance SMD LED Light Bar (75mm/3") ( Z-E0058 )
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (20MM/0.75") ( Z-E0052 )
  • RC4WD 1/10 Baja Designs Stealth LED Light Bar (100mm) ( Z-E0064 )
  • RC4WD 1/10 Baja Designs Squadron Pro LED Lights ( Z-E0066 )
  • RC4WD Outcry Crawler Brushed Mini Speed Control ESC Unit ( Z-E0070 )
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (100mm/4") ( Z-E0059 )
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") ( Z-E0055 )
  • XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio ( Z-R0006 )
  • RC4WD Y Harness with Tamiya Leads ( Z-S1577 )
  • XT60 Male to Tamiya Male Connector Adapter ( Z-E0072 )
  • Y harness with Tamiya Connectors for Lightbars ( Z-S1601 )
  • RC4WD 1/10 Warn 9.5cti Winch ( Z-S1079 )
  • RC4WD Foldable Winch Anchor ( Z-S1262 )
  • RC4WD Foldable Winch Anchor (Black) ( Z-S1623 )
  • RC4WD 1/8 Warn Zeon 10 Winch ( Z-E0069 )
  • RC4WD 1/10 Mini Warn 9.5cti Winch ( Z-S1571 )
  • Hitch Mount Portable Winch Mounting System ( Z-S1284 )
  • Red Super Soft Flex Leaf Springs (4) ( Z-S0570 )
  • Leaf Spring Shackles & Mounts Kit ( Z-S0047 )
  • Super Scale Steel Leaf Spring for TF2 & Tamiya Bruiser ( Z-S1476 )
  • The Ultimate Scale Shocks 90mm (Black) ( Z-D0009 )
  • RC4WD Superlift Superide 90mm Scale Shock Absorbers ( Z-D0015 )
  • RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB ( Z-D0038 )
  • RC4WD 70mm Old Man Emu Nitrocharger Sport Shock by ARB ( Z-D0034 )
  • 540 Crawler Brushed Motor 35T ( Z-E0005 )
  • 540 Crawler Brushed Motor 55T ( Z-E0003 )
  • 540 Crawler Brushed Motor 80T ( Z-E0001 )
  • RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor ( Z-E0041 )
  • RC4WD Brushed 55T Boost Rebuildable Crawler 540 Motor ( Z-E0044 )
  • RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor ( Z-E0045 )
  • 540 Crawler Brushed Motor 27T ( Z-E0067 )
  • 540 Crawler Brushed Motor 20T ( Z-E0065 )
  • Scale Steel Punisher Shaft (100mm-130mm) 5mm ( Z-S0209 )
  • Punisher Shaft II (90mm - 120mm / 3.54" - 4.72") 5mm F-350 Hi-Lift ( Z-S0522 )
  • Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole ( Z-S0826 )
  • Rebuildable Super Punisher Shaft (100mm - 118mm / 3.94" - 4.65") 5mm Hole ( Z-S1261 )
  • Ultra Scale Hardened Steel Driveshaft set for Tamiya Bruiser ( VVV-C0119 )
  • Ultra Scale Hardened Steel Driveshaft "Ver 2" (80mm - 110mm / 3.15" - 4.33") ( VVV-S0120 )
  • Mega Truck Universal Shaft "Ver 2" (92mm to 130mm) ( VVV-S0054 )
  • Ultra Scale Hardened Steel Driveshaft (65mm - 85mm / 2.25" - 3.34") 5mm ( VVV-S0017 )
  • M3 Mini Aluminum Axial Style Rod End (Blue) (10) ( Z-S1354 )
  • M3 Mini Aluminum Axial Style Rod End (Silver) (10) ( Z-S1346 )
  • M3 Mini Aluminum Axial Style Rod End (Red) (10) ( Z-S1362 )
  • M3 Mini Aluminum Axial Style Rod End (Black) (10) ( Z-S1370 )
  • M3 Offset Short Aluminum Axial Style Rod End (Black) (10) ( Z-S1376 )
  • M3 Offset Short Aluminum Axial Style Rod End (Silver) (10) ( Z-S1352 )
  • M3 Offset Short Aluminum Axial Style Rod End (Red) (10) ( Z-S1368 )
  • M3 Offset Short Aluminum Axial Style Rod End (Blue) (10) ( Z-S1360 )
  • Superlift Adjustable Steering Stabilizer (90mm-120mm) ( Z-S0986 )
  • Superlift Adjustable Steering Stabilizer (65mm-90mm) ( Z-S0988 )
  • Heavy Duty Nylon Strap Lock (5) ( Z-S0552 )
  • Scale Plastic Driver Figure ( Z-S0190 )
  • #1 Aluminum Bumper Mount For Trail Finder 2 ( Z-S0006 )
  • #2 Aluminum Bumper Mount For Trail Finder 2 ( Z-S0004 )
  • #3 Aluminum Bumper Mount For Trail Finder 2 ( Z-S0003 )
  • 3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup ( Z-S0565 )
  • 4 Link Kit For Trail Finder 2 Rear Axle ( Z-S0603 )
  • ARB 1/10 Roof Rack ( Z-X0008 )
  • Full Tubed Exocage for Hilux and Mojave Body ( Z-C0045 )
  • Rampage Front Recovery Bumper ( Z-S0997 )
  • Rampage Recovery Rear Bumper with Swing Away Tire Carrier ( Z-S0959 )
  • RC4WD 101mm (3.98") Internally Threaded Titanium Link ( Z-S1321 )
  • RC4WD 60mm (2.36") Internally Threaded Titanium Link ( Z-S1319 )
  • RC4WD 67mm (2.64") Internally Threaded ( Z-S1333 )
  • RC4WD 73mm (2.87") Internally Threaded ( Z-S1329 )
  • RC4WD 75mm (2.95") Internally Threaded ( Z-S1337 )
  • RC4WD 81mm (3.19") Internally Threaded ( Z-S1331 )
  • RC4WD Marlin Crawlers Front Steel Tube Bumper for Trail Finder 2 ( Z-S0778 )
  • RC4WD Adjustable Jack Stand Truck Display ( Z-X0013 )
  • RC4WD Marlin Crawlers Rear Tube Bumper for Trail Finder 2 ( Z-S0767 )
  • RC4WD Marlin Crawlers Side Metal Sliders for Trail Finder 2 ( Z-S0753 )
  • Rear Shock Hoops for Gelande 2 Chassis ( Z-S0799 )
  • Single Rear Shock Mount for Trail Finder 2 ( Z-S0768 )
  • Steel Roll Bar for Trail Finder 2 ( Z-S0771 )
  • Superlift Dual Front Shock Mount for Trail Finder 2 ( Z-S0028 )
  • Tough Armor Front Lightbar Bumper for Trail Finder 2 ( Z-S1058 )
  • Tough Armor Front Tube Bumper w/Winch Mount for Trail Finder 2 ( Z-S0765 )
  • Tough Armor Rear Aluminum Bumper for Trail Finder 2 ( Z-S0981 )
  • Tough Armor Rear Bar Bumper for Trail Finder 2 ( Z-S0728 )
  • Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount ( Z-S0579 )
  • Tough Armor Side Single Bar Sliders for Trail Finder 2 ( Z-S0727 )
  • Tough Armor Side Steel Sliders for Trail Finder 2 ( Z-S0056 )
  • Tow Bar Mount for TF2 / G2 ( Z-S1125 )
  • Tuff Truck Saddle Tool Box for Trail Finder 2 ( Z-S0839 )
  • Universal Bumper Mounts to fit Trail Finder 2 ( Z-S1005 )
  • 1/14 Truck Tire Chocks ( VVV-C0024 )
  • Marlin Crawlers Rear Steel Tube Bumper for Trail Finder 2 ( Z-S1373 )
  • RC4WD Billet Aluminum Fuel Cell Radio Box ( Z-S1093 )
  • RC4WD Billet Aluminum Fuel Cell Radio Box ( Z-S1122 )
  • Rock Krawler Replacement 3/4 Link kit for Trail ( Z-S1486 )

Front Shocks:

  • King Off-Road Scale Dual Spring Shocks (70mm) ( Z-D0037 )
  • RC4WD 70mm Old Man Emu Nitrocharger Sport Shock by ARB ( Z-D0034 )


Rear Shocks:

  • The Ultimate Scale Shocks 90mm (Silver) ( Z-D0001 )
  • RC4WD Superlift Superide 90mm Scale Shock Absorbers ( Z-D0015 )
  • King Off-Road Scale Dual Spring Shocks (90mm) ( Z-D0033 )
  • RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB ( Z-D0038 )
  • The Ultimate Scale Shocks 90mm (Black) ( Z-D0009 )


Instruction Manuals:

View AllClose

1 Review

  • 5

    maximum quality

    Posted by Javier on 5th Apr 2021

    RC4WD = Top Quality, Brilliant Rcbitz, Best Service

View AllClose
