540 Crawler Brushed Motor by RC4WD 65T Z-E0002 Bullet Connectors TF2 G2 SCX10 RC

(No reviews yet) Write a Review
SKU:
Z-E0002
UPC:
837654597781
  • 540 Crawler Brushed Motor by RC4WD 65T Z-E0002 Bullet Connectors TF2 G2 SCX10 RC
  • 540 Crawler Brushed Motor by RC4WD 65T Z-E0002 Bullet Connectors TF2 G2 SCX10 RC
  • 540 Crawler Brushed Motor by RC4WD 65T Z-E0002 Bullet Connectors TF2 G2 SCX10 RC
  • 540 Crawler Brushed Motor by RC4WD 65T Z-E0002 Bullet Connectors TF2 G2 SCX10 RC
  • 540 Crawler Brushed Motor by RC4WD 65T Z-E0002 Bullet Connectors TF2 G2 SCX10 RC
  • 540 Crawler Brushed Motor by RC4WD 65T Z-E0002 Bullet Connectors TF2 G2 SCX10 RC
RRP $16.74

Description

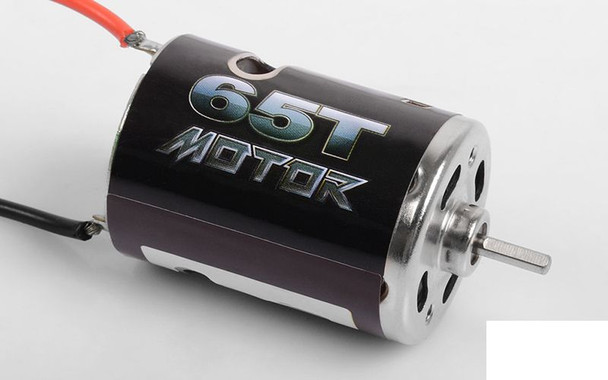

(1) RC4WD 540 Crawler Brushed Motor (65T)

Custom made to fit all popular Truck such as Bully, AX10, Trail Finder!

Specifications:
  • Custom made 540 Steel case
  • Chrome plated case
  • Build in capacitor for minimizing glith
  • High torque magnet and rotor
  • Small footprint (50mm long)
  • Tuned for Rock Climbing and Scale Driving
  • Polished Bushings
  • Body OD: 1.39in / 35.5mm
  • Output Shaft Length: 0.43in / 11mm
  • Output Shaft: 0.12in / 3.1mm
  • Min and Max Voltage Range: 2.4V-30V

Performance Specs:

  • (At no load) RPM @ 7.2V : 7000 (ï¾±10%), .65Amp Current
  • (Max Efficiency) RPM @ 7.2V : 5900 (ï¾±10%), 2.79Amp Current
  • Designed Oprating temperature range: -30ï¾°C to +80ï¾°C
  • Motor end play : .50mm max
  • Noise level: < 60db





What's Included:
  • 1x RC4WD 540 Crawler Brushed Motor (65T)

Optional Parts:
  • 540 Crawler Brushed Motor 20T (Z-E0065)
  • 540 Crawler Brushed Motor 27T (Z-E0067)
