RC4WD
1/4 Scale Aluminum Rear Axle w/ Quick Change Gears Skellenger Styl Z-A0130 RC4WD
(No reviews yet)
Write a Review
- SKU:
- Z-A0130
- UPC:
- 639302597149
Description
Additional Information - Gear Ratio 1:2.5 or 1:5.3. Output shaft measures 9.5mm and the axle shafts measured 11.75 mm. Differentials are locked only.

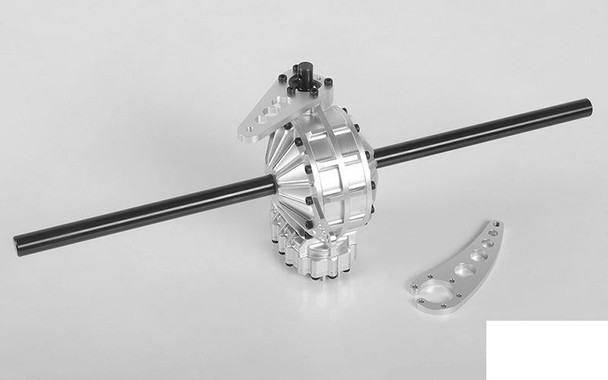

?? Scale Aluminum Rear Axle with Quick Change Gears (Skellenger Style)
Specifications:
- CNC Machined
- Billet Aluminum
- Silver Anodized Finish
- Length: 15.4in / 390.1mm
- Weight: 41.0oz / 1163.2g
Shown installed with RC4WD ?? Scale Knock Off Hub Set (FR/RR) (Z-S1803) for example (Not Included)
Features quick change gears just like the full scale race axles. These gears are easy to swap by taking the rear cover off and removing the e-clips.
What's Included:
- 1x ?? Scale Aluminum Rear Axle with Quick Change Gears (Skellenger Style)
- 1x Stabilizing Connecting Bracket
Optional Parts:
- RC4WD ?? Scale Knock Off Hub Set (FR/RR) (Z-S1803)
Replacement Hardware:
- Steel Socket Head Cap Screws M3 x 8mm (Z-S1231)
- Steel Socket Head Cap Screws M3 X 10mm (Z-S0976)
- Steel Socket Head Cap Screws M4 X 12mm (Z-S1004)
- Steel Button Head Cap Screws M3 x 10mm (Z-S0653)
- Steel Button Head Cap Screws M3 x 4mm (Z-S0745)
Notes:
- RC4WD has designed this to be a direct replacement for the 1/4 scale Skellenger axles. We put a few small changes in the design to make it the best 1/4 scale axle available. The solid axle shaft design allows you to build the axles with any offset you need using our RC4WD ?? Scale Knock Off Hub Set (FR/RR) Z-S1803. The axle shaft can also be offset by adjusting the position of the differential gear on the shaft. This axle will be perfect for any large custom builds, vintage and 1/4 scale race cars.
