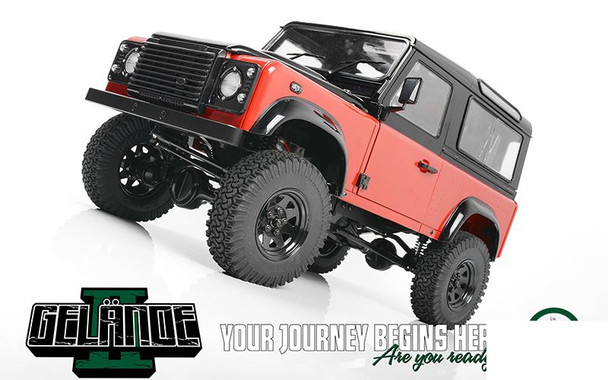

RC4WD Gelande II RTR 2015 Land Rover Defender D90 Autobiography Z-RTR0043

Additional Information -

Hammer Transfer Case

Ratio: 1.47:1

Gears: Wide 0.8 Mod Hardened Steel Gears

Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1

Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles

Ratio: 15/40 = 2.67:1

Width at Hex: 178.2mm

G2 Suspension

Double Triangulated 4 Link Rear Suspension

3 Link Suspension with Panhard Bar

Shock Absorbers

Dual Spring 80mm Shocks: Can be Oil Filled

Wheels

Type: 1.9" 5 Lug Wagon Wheels

Hub: Pin Type

Width: 25mm

Back Spacing: 11mm

Bumpers

Machined Billet Aluminum, Lightweight

G2 Truck Dimensions

Wheelbase: 275mm (10.8")?�

Length: 426mm (16.7")

Height: 252mm (9.9")

Ground Clearance: 58mm (2.28")

?�Final Drive Ratio: 31.9:1

Weight: 7.40Lbs / 3.3Kg

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the G2 Drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

SUSPENSION

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks offer realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

The G2 includes a set of RC4WD Black Stamped Steel 1.9" internal Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.

Every G2 needs a tough set of rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

DETAILS

The G2 features the 2015 Land Rover?�Defender D90 Body Set, which comes with an awesome assortment of scale details including mirrors, door handles, vents and grille to match the 1:1 vehicle.

It?�?�?�s officially licensed with Land Rover with opening side and rear doors and hood, the 2015 Land Rover Defender D90 Body Set is the most scale replica in the market.

The 2015 Land Rover Defender D90 Body Set features a Pimento Red and Black paint job with exact details to replicate the Autobiography Edition launched in 2015 to commemorate the last production year of the classic.

The body features a full detailed interior, seats, opening center console, plastic and rubber mirrors and a detailed dashboard. It's all here to bring your scale experience to a new level.

The body features many intricate details and is almost unmistakable from its full size counterpart.

ELECTRONICS

The G2 includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!

The G2 is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you're sure to get where you're going!

The G2 features the popular RC4WD Outcry II Brushed Speed Controller with built-in drag brake and a separate 6V 5amp Turbo BEC for reliable, constant power on demand. Anytime.

It's All in the box! Everything you need is provided to get you on the trails today!

What's Included:

• 1x RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition)

• (Z-S0794)
• Gelande 2 Rear 4 Link Mount (Z-S0795)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
• M3 Short Bent Plastic Rod End (20x) (Z-S0402)
• M3 Mini Plastic Rod End (20x) (Z-S0398)
• M3 Offset Short Plastic Rod End (20x) (Z-S0401)
• 14t 32p Hardened Steel Pinion Gear (Z-S0430)
• Yota Front Steel Axle Shaft (Z-S0060)
• Yota Steel Straight Axle Shaft (Rear) (Z-S0061)
• Gelande 2 Chassis Set (Z-C0040)
• Battery Plate for Gelande 2 (Z-S0792)
• Servo Mounts for Gelande 2 Chassis (Z-S0791)
• Fuel Cell Radio Box (Z-S0592)
• Hammer Transfer Case (1.47/1) (Z-U0024)
• Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
• R3 Scale Single Speed Transmission (Z-U0028)
• RC4WD 12mm Axle Wheel Hexes (2 way) (Z-S0238)
• Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
• Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
• Gelande 2 Front Replacement Bumper (Z-S0800)
• Gelande 2 Rear Replacement Bumper (Z-S0801)
• R3 Single Speed Transmission Mounts (Z-S0802)
• Metal Drive Coupling for Gelande 2 (Z-S0803)
• 73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
• 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
• 65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
• 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
• Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
• 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black) (Z-W0129)
• Dirt Grabber 1.9" All Terrain Tires (Z-T0005)
• Heavy Duty Nylon Strap Lock (5) (Z-S0552)
• Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
• 1mm Black Spacer with M3 Hole (10) (Z-S0809)
• 2mm Black Spacer with M3 Hole (10) (Z-S0600)
• 3mm Black Spacer with M3 Hole (10) (Z-S0806)
• 5mm Black Spacer with M3 Hole (10) (Z-S0821)
• 540 Crawler Brushed Motor 45T (Z-E0004)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Outcry III Waterproof ESC (Z-E0113)
• RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
• XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)

• Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
• Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
• Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
• Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
• Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
• Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
• Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)
• Steel Flat Head Cap Screws M3 x 10mm (10) (Z-S0860)
• Steel Flat Head Cap Screws M3 x 14mm (10) (Z-S0746)
• Gelande II Electronics Deck (Z-S0793)
• Nylock Nuts M3 (Black) (Z-S0629)
• M3 x 15mm Set Screw (10) (Z-S0650)
• M3 X 10mm Set Screw (10) (Z-S0308)
• M3 Driveshaft Screw Pin (5) (Z-S0804)
• Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)
• Steel Socket Head Cap Screws M2.5 x 6mm (10) (Z-S0855)
• Button Head Self Tapping Screws M2.5 x 8mm (Black) (Z-S1572)
• M4 Flanged Lock Nut (Black) (Z-S0620)
