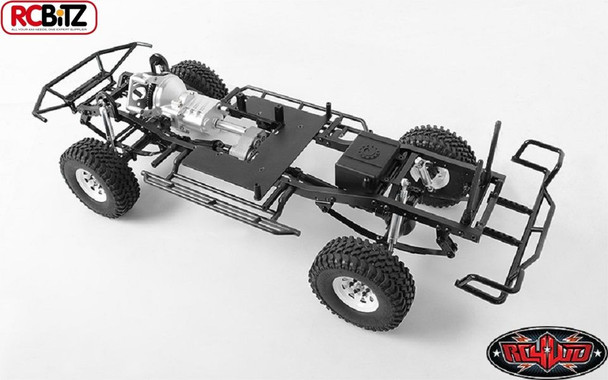

Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059

(No reviews yet) Write a Review
SKU:
Z-K0059
UPC:
639302605752
On Sale
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
  • Trail Finder 2 Truck Kit LWB 1/10 Scale Long Wheel Base Chassis ONLY Kit Z-K0059
MSRP: £555.99
Now: £389.19
Was: £555.99
— You save £166.80

Description

Additional Information -

The TF2 LWB Kit has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 LWB Kit. Performance of the TF2 LWB Kit is smooth with its 2 speed selectable transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 LWB Kit is truly a work of art in both appearance and performance.

Every TF2 LWB Kit is compatible with a full range of option and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The TF2 LWB Kit.

Your adventure awaits!

Custom Designed for True to Scale Looks
Realistic Billet Aluminum Ladder Frame Chassis
2 Speed Remote Selectable Transmission
Center Mounted Realistic 4x4 Transfer Case
Cast Metal Axles with Locked Differentials
True to Scale Leaf Spring Suspension
Highly Detailed Body with Dropped Bed and More
1.55" Stamped Steel Beadlock Wheels with Lug Nuts
Super Grip High Performance Mud Thrasher Tires
Realistic Tube Bumpers - Rock Rails - Skid Plate

All New Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide 32P Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

All New R3 2 Speed Transmission
Ratios Pinion/Spur 14/64 = 4.57:1
1st Gear 3.47:1
2nd Gear 1.27:1
Gears: Wide Steel 32P, Delrin Spur, Slipper Clutch
Features: Machined Billet Aluminum Casing, Scale Looking, Motor Mount can be adjusted with up to 10 different positions, Compatible with other brand spurs (Axial, Traxxas, Robinson)

Cast Yota Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 176.5mm

All New Trail Finder "LWB" 2 Chassis
Features: Billet Aluminum Constriction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Very Durable High Quality Steel Yokes

Wheels
Name: 1.55’’ OEM Beadlock Wheels
Hub: 12mm Hex
Width: 22mm
Back Spacing: 9mm
Features: Stamped Steel, Aluminum Hub, Internal Beadlock, Very Scale Looking, 6 Lug Design

Bumpers
Marlin Crawlers Front Plastic Tube Bumper
Marlin Crawlers Rear Plastic Tube Bumper
Marlin Crawlers Side Plastic Sliders
Authentic Looking Crawler Style Bumper, High Quality Flexible Plastic, Extremely Durable, Very Scale

TF2 Truck Dimensions
Wheels Base: 12.36in/314mm
Width: 8.46in/215mm
Height: 8.27in/210mm
Ground Clearance: 2.09in/53mm
Final Drive Ratios: 1st - 62.1:1, 2nd - 22.75:1

DRIVETRAIN

The R3 2 Speed Transmission comes with a fully machined billet aluminum case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. The newly designed motor mount is adjustable with up to 10 different positions.

The TF2 LWB Kit includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and new 32P Widened Gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the TF2 LWB Kit Drivetrain has the most durable gears RC4WD has to offer so the TF2 LWB Kit can stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota Axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.

The Drive Shafts for the TF2 LWB Kit are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

SUSPENSION

The TF2 LWB Kit Chassis features a molded fuel cell that doubles as an electronics storage box and an aluminum, frame mounted under cab electronics tray for multiple mounting options for your electronics.

The TF2 LWB Kit includes a set of RC4WD Ultimate Scale Shocks. These shocks are designed for ultimate scale looks and optimum performance. They’re machined from billet aluminum, are internally sprung and are completely rebuildable!

The TF2 LWB Kit Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts for maximum strength.

The TF2 LWB Kit includes a set of RC4WD White Stamped Steel 1.55’’ Internal Beadlock Wheels. These wheel offer a super tough paintable white finish, aluminum internal ring and popular 6 Lug design.

Every TF2 LWB Kit needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

What's Included:
  • 1x RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base Chassis Kit
This kit requires building time (approx. 2-3 hours) for body and electronics.

Required to Complete:

Truck Kit
  • Hex Drivers (1.5mm, 2mm, 2.5mm)
  • Long Nose Pliers
  • Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Electronics
 Suggested Bodies
  • Mojave II Four Door Complete Body Set (Z-B0119)
Replacements Parts:
  • Soft Steel Leaf Spring for Trail Finder 2 (Z-S0518)
  • Hammer Transfer Case (1.47/1) (Z-U0024)
  • Metal Drive Coupling for Trail Finder 2 (Z-S0599)
  • Yota Steering Links for Trail Finder 2 (Z-S0601)
  • R3 Scale 2 Speed Transmission (Z-U0025)
  • 14t 32p Hardened Steel Pinion Gear (Z-S0430)
  • Fuel Cell Radio Box (Z-S0592)
  • Trail Finder 2 Plastic Body Posts (Z-B0029)
  • Leaf Spring Shackles & Mounts Kit (Z-S0047)
  • RC4WD Marlin Crawlers Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
  • RC4WD Marlin Crawlers Rear Plastic Tube Bumper for Trail Finder 2 (Z-S0595)
  • M3 Offset Short Plastic Rod End (20x) (Z-S0401)
  • M3 Mini Plastic Rod End (20x) (Z-S0398)
  • Stamped Steel 1.55" Stock White Beadlock Wheel (Z-W0035)
  • Yota Ultimate Scale Cast Axle (Front) (Z-A0058)
  • Yota Ultimate Scale Cast Straight Axle (Rear) (Z-A0061)
  • Scale Nylon Long Punisher Shaft (104mm-150mm) 5mm Hole (Z-S0582)
  • Scale Nylon Short Punisher Shaft (89mm-120mm) 5mm Hole (Z-S0583)
  • Trail Finder 2 Bumper Mounts (Z-S0593)
  • Mud Thrashers 1.55" Scale Tires (Z-T0100)
  • The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
  • The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
  • Heavy Duty Nylon Strap Lock (5) (Z-S0552)
  • Metal Shield Bearing 5x9x3mm (Z-S0841)
  • Yota Front Steel Axle Shaft (Z-S0060)
  • Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)
  • RC4WD Marlin Crawlers Side Plastic Sliders for TF2 LWB (Z-S1730)
Hopups:
  • Steel Rear Bumper for RC4WD Trail Finder 2 (Style A) (VVV-C0208)
  • Steel Rear Bumper for RC4WD Trail Finder 2 (Style B) (VVV-C0212)
  • Rough Stuff Limited Edition Red Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round and IPF Square Lights) (VVV-C0215)
  • Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round Lights) (VVV-C0211)
  • Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella and IPF Round Lights) (VVV-C0209)
  • Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Double Hella Round Lights) (VVV-C0213)
  • Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round and IPF Square Lights) (VVV-C0219)
  • Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Standard) (VVV-C0206)
  • Winch (Winch options)
  • Rear 4 Link Kit (Z-S0603)
  • Front 3 Link w/Panhard Bar (Z-S0565)
  • XVD For Yota Front Axle (Z-S0342)
  • Scale Aisin/Yota Style Hubs (Z-S0196)
  • RC4WD Marlin Crawlers Front Steel Tube Bumper for Trail Finder 2 (Z-S0778)
  • Rear Machined Aluminum Bumper w/Hitch (Z-S0579)
  • Red Super Soft Leaf Springs (Z-S0570)
  • RC4WD Marlin Crawlers Rear Tube Bumper for Trail Finder 2 (Z-S0767)
  • Punisher Shaft (Z-S0209)
  • RC4WD King 90mm Offroad Shocks (Rear) (Z-D0033)
  • RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
  • RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
  • K44 Scale Front Axle (Z-A0048)
  • K44 Scale Rear Axle (Z-A0049)
  • TF2 LWB Body Mounting Kit for Land Cruiser LC70 (Z-S1782)
  • RC4WD King Off-Road Scale Dual Spring Shocks (70mm) (Z-D0037)
  • RC4WD 70mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0034)
  • RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
  • King Off-Road Scale Dual Spring Shocks (90mm) (Z-D0033)
  • RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
  • The Ultimate Scale Shocks 90mm (Black) (Z-D0009)

Upgrades:

  • Leaf Spring Mount for TF2 LWB Chassis and Toyota LC70 Body (VVV-C0360)
Items of Interest: (Not required for completion)
Notes:
  • To take advantage of our bundle promotion for this product which includes our Toyota Land Cruiser LC70 1/10 Hard Body Kit (VVV-48601) and TF2 LWB Body Mounting Kit for Land Cruiser LC70 (Z-S1782), check out our RC4WD TF2 LWB w/ Land Cruiser LC70 Body Set Bundle (Z-BB0001).
