R3 Scale 2 Speed Transmission Trail Finder 2 TF2 Complete Slipper & Spur Z-U0025

(No reviews yet) Write a Review

SKU:: Z-U0025
UPC:: 091037074218
MPN:

RRP £182.49

Current Stock: 1

Quantity:

Description
0 Reviews

Description

Additional Information -

R3 Scale 2 Speed Transmission

This is the all new R3 Scale 2 speed tranny that is used in the Trail Finder 2.

Specifications:

CNC Machined Billet Aluminum Case
Clockable Motor Mounting (10 different positions)
2 Speed
Gear Ratios Pinion / Spur 14/64 = 4.57:1
1st gear = 3.47:1
2nd gear = 1.27:1
Wide Steel 32 pitch gears
Delrin Spur Gear
Slipper Clutch Design
Changable Gearing Options
Compatible With Other Brand Pinions and Spur Gears
Output Shaft OD: 0.19" / 5mm
Height: 2.44in / 62mm
Length: 4in / 101.6mm
Width: 2.91in / 74mm
Weight: 9.7oz / 275g

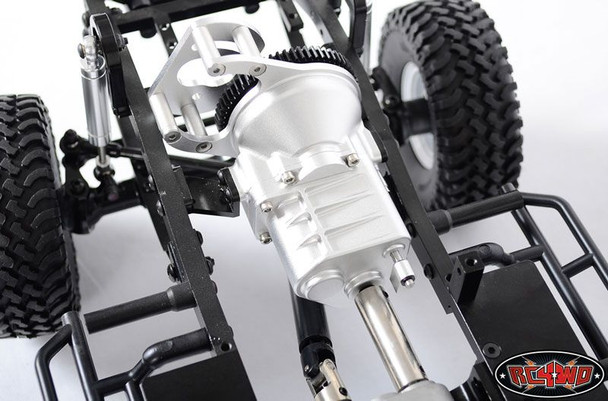

Shown installed with RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) for example (Not Included)

What's Included:

1x R3 Scale 2 Speed Transmission
1x 14t 32p Hardened Steel Pinion Gear (Z-S0430)
1x M3 x 3mm Set screw (Z-S0124)

Replacement Parts:

R3 2 Speed Transmission Shafts (Z-S0689)
R3 2 Speed Transmission Shift Clutch (Z-S0009)
R3 Motor Mount Plate (Z-S0733)
R3 Shift Rod Linkage Mount Ver II (Z-S0675)
Shift Fork for R3 2 Speed Transmission (Z-S0637)
Replacement Gears for R3 2 Speed Transmission (Z-G0056)
14t 32p Hardened Steel Pinion Gear (Z-S0430)
Metal Drive Coupling for Trail Finder 2 (Z-S0599)

Optional Parts:

RC4WD V8 Engine Cover with Metal Intake Set for R3 Transmission (Z-S1749)

Required Parts:

R3 Tranny Mounts For Trail Finder 2 (Z-S0677)
TF2 Long Drive Shaft Coupling for R3 Single Speed (Z-S0898)

Notes:

Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024) But you will need Z-S1690 and a Servo

Manual: Click Here for Download
