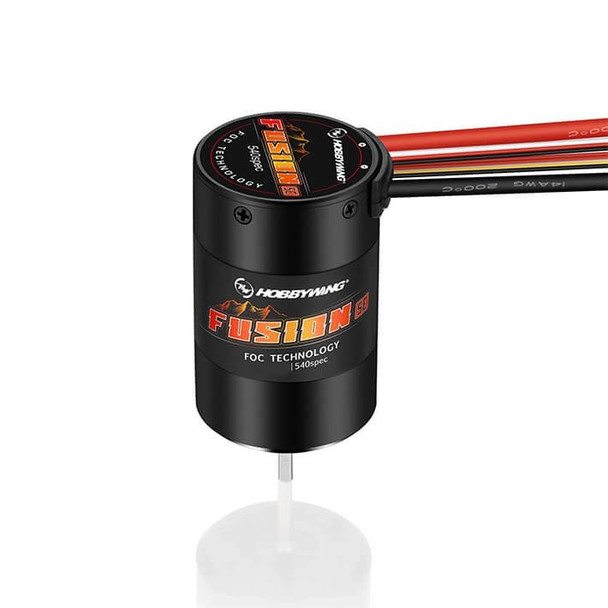

Hobbywing Quicrun Fusion SE 1800KV Sensored Brushless 2in1 HW30404317

HOBBYWING QUICRUN FUSION SE 1800KV SENSORED BRUSHLESS 2IN1

SPECIFICATIONS

Type

Scale:1/10th
Brushed/Brushless:BL
Sensored/Sensorless:SD
Waterproof:Waterproof

Specifications

Cont./Peak Current:40A
Input Voltage:2-3S LiPo/6-9 Cell NiMH
BEC Output:6V/7.4V@4A 6A peak
Motor KV:1800KV
Diameter/Length of Motor:36mm / 58.1mm
Shaft Diameter / Exposed Shaft Length:3.175mm / 16.5mm
Motor Poles:4

Wires & Connectors

Input Wires:Red-14AWG-200mm*1 /' Black-14AWG-200mm*1
Input Connectors:XT60
(Note:All the wire length above is the original length, not the length you see from the outside.)

ESC Programming Via

SET Button on ESC:Not Supporterd
LED Program Box:Supported
LCD Program Box:Not Supported
OTA Programmer:Not Supported
Program Port:Independent programming interface (Switch Positionm)

Firmware

Firmware Upgrade:Not Supported

Size & Weight

Size:36 x 58.1mm
Weight:201g (Including Wires and Connectors)

Applications

Venicles:1/10th Rock Crawler
