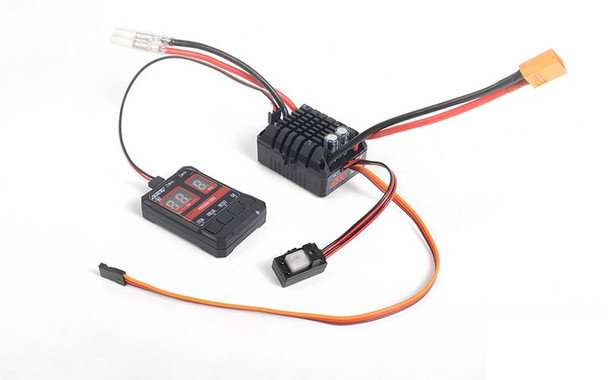

Name: Outcry Extreme Speed Controller ESC w/ Program Card Z-E0118 RC4WD 2-3S 80A XT60
Brand: RC4WD
SKU: Z-E0118
Price: 87.99 GBP
Availability: InStock

Outcry Extreme Speed Controller ESC w/ Program Card Z-E0118 RC4WD 2-3S 80A XT60

(No reviews yet) Write a Review

SKU:

Z-E0118

UPC:

639302603383

Description
0 Reviews

Description

Additional Information -

Outcry Extreme Speed Controller ESC w/ Program Card

This new Outcry III Water-resistant ESC features great characteristics for scale trail driving, making it the perfect choice for any scale build!

Specifications:

Input Voltage: 2-3S Lipo/5-9 Cells NiMH
Built-in Powerful Switch-mode BEC
BEC Output Voltage-Current: 6V / 7.4V @ 8A
Cont. / Peak Current : 80A / 400A
Applicable to All Weather Conditions?�
Multiple Protection Functions: Low Voltage Protection, Over-temperature Protection
Recommended Motors: 540 /550 / 775 Motors
Size: 1.96 x 1.68 x 1.04in / 50 x 42.9 x 26.5mm
Program Card Working Voltage: 5.0V - 8.0V
Program Card Size: 1.53 x 0.47 x 22.0in / 38.9 x 12.0 x 55.9mm
Total Weight: 1.37oz / 110.5g
Battery Plug: XT60

Shown installed on RC4WD Carbon Assault 1/10th Monster Truck w/ Manticore Lexan Body Set (Z-RTR0041) for example (Not Included)

What's Included:

1x Outcry Extreme Speed Controller ESC?�
1x LED Program Card
1x XT60 Female to Tamiya Male Connector Adapter
1x?�Extension Wire 150mm

Optional Parts:

540 Crawler Brushed Motor 80T (Z-E0001)
540 Crawler Brushed Motor 65T (Z-E0002)
540 Crawler Brushed Motor 55T (Z-E0003)
540 Crawler Brushed Motor 45T (Z-E0004)
540 Crawler Brushed Motor 35T (Z-E0005)
RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)
Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)
540 Crawler Brushed Motor 20T (Z-E0065)
540 Crawler Brushed Motor 27T (Z-E0067)

Instruction Manuals:

Click here to download.

Notes:

Prior to proceeding, be sure to either remove the pinion from the motor or elevate the truck so the wheels are not able to touch the ground.
Do not touch this product while in use to avoid injury. Product emits heat and thus, the heatsink may become extremely hot.
This product is water-resistant.?�
Begin using your ESC by calibrating with your transmitter. We strongly recommend all users to use the ?�?�?�Fail Safe?�?�?� function on the radio system and set (F/S) to ?�?�?�Output OFF?�?�?� or ?�?�?�Neutral Position?�?�?� . Example of calibrating Neutral range and Endpoint.
