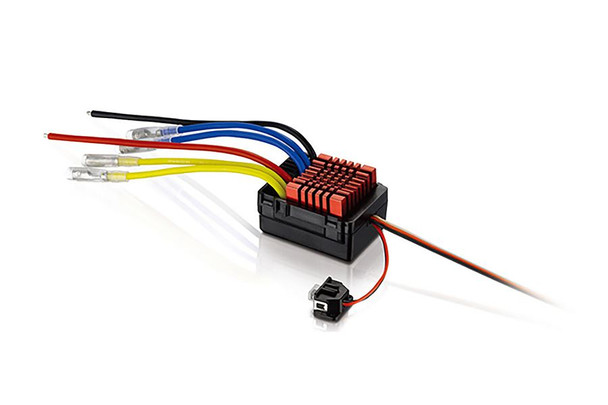

Hobbywing Quicrun 0880 Dual Motor Brushed Esc (80A) Wproof HW30120301 80 amp

Additional Information -

Specifications

• Cont./Peak Current: 80A/400A
• Input Voltage: 2-4S LiPo/5-12 Cell NiMH
• BEC: Output6V@4A (Switch-mode)

Wires & Connectors

• Input Wires: Red-16AWG-150mmx1 / Black-16AWG-150mmx1
• Output Wires: Blue-16AWG-100mmx2 / Yellow-16AWG-100mmx2
• Input Connectors: Not supplied
• Output Connectors: 4.0 Bullet Connectors (Female)
• Separate Programming/Fan Port

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via LED Program Box only HW30501003

Size & Weight

• Size: 45.9X34.7X26.5mm
• Weight: 75g

Applications

• Motors: Brushed Motor(540/550/775 size motors)
• Vehicles: Various 1/10th & 1/8th Vehicles

KV Rating/T Count

Brushed Motor Limit with 2S LiPo/6S NiMH: =12T or RPM<30000@7.4V (540/550 size motors)
Brushed Motor Limit with 3S LiPo/9S NiMH: =18T or RPM<20000@7.4V (540/550 size motors)
Brushed Motor Limit with 4S LiPo/12S NiMH: =24T or RPM<15000@7.4V (540/550 size motors)
