Etronix JR / Futaba Switch ET0782 ON/OFF loom servo connector plug power LED
- SKU:
- ET0782
- UPC:
- 5055323930126
Description
Additional Information - Futaba has a locating tab on the side and JR has rounded corners. These designs are to avoid reverse connection. With modification that can be interchanged.
ETRONIX JR/Futaba SWITCH

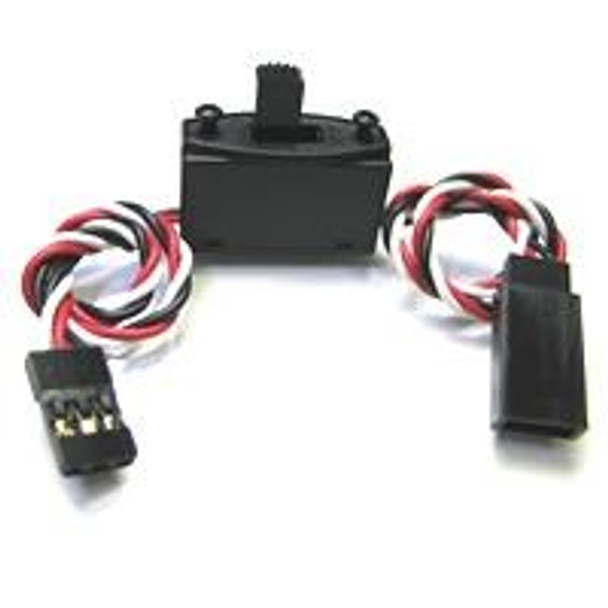

Etronix JR/Futaba Switch ET0782
Supplied with Male JR connector on one end and Female futaba on the other. This can also be mouted through a panel as the ON/OFF plate is seperate mounted with supplied screws. Simply cust a 9x5mm slot, maximum panel thickness is 5mm.
Can be used to turn on and off accessories like lights, or Power to a Winch etc.
Dimentions Approximately
300mm total length with the switch in the middles. Lead in not cirled as image.
Main switch body 10x14x26mm
Maximum panel thickness 5mm
Switch 8mm tall
Use a mechanical on/off switch that has a very positive, stiff mechanical operation, where switch slider 'clicks’ solidly into place in both the ON and OFF positions. Avoid switches that have a 'soft’ operation, where the slider is easy to move. Also, a switch that has a tall slider is much easier to operate than a switch with a short slider.
A 2-plug on/off switch is a very simple device. You connect one plug to the receiver battery, and the other end into the receiver. Turn the switch 'ON’ to power the receiver; turn the switch 'OFF’ to break the circuit.
However, to charge your receiver battery, you have to disconnect the battery from the switch, connect a charger to the battery, then charge. When you are finished charging, you have to disconnect the charger, then reconnect the receiver battery to the switch. If your wiring is all bundled up for protection, this may prove bothersome.

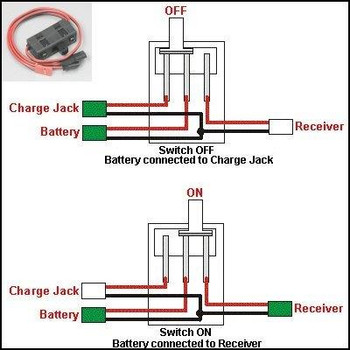

If you still want to use a simple on/off switch on your car, but want to be able to charge your receiver battery more easily, consider using a 3-plug/lead switch.
Related Products
Related Products
Etronix JR Switch ET0780 ON/OFF loom servo connector plug power LED lights RC
Etronix
Etronix JR / JST Switch ET0783 ON/OFF loom servo connector plug power LED lights
Etronix
Etronix Futaba Switch ET0781 loom Servo connection plugs Leads RC
Etronix
Etronix JR 3 Lead Switch Harness ET0778 loom servo connector plug power charge
Etronix

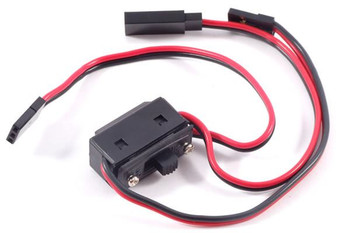

Etronix Futaba 3 Lead Switch Harness ET0779 loom Servo connection plugs RC
