RC4WD
TEQ Ultimate Scale Cast Axle REAR Z-A0133 RC4WD XVD SCX10 II Element Enduro
(No reviews yet)
Write a Review
- SKU:
- Z-A0133
- UPC:
- 639302600573
Description
Additional Information -

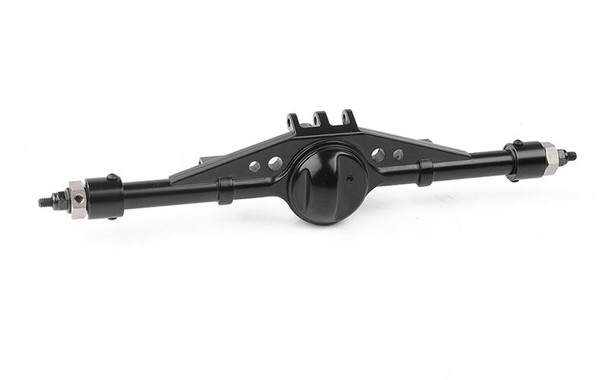

TEQ Ultimate Scale Cast Axle (Rear)
With improved steering and durability, the TEQ Ultimate Scale Axles are a modern version of the Yota II axles designed as an upgrade for Axial SCX10 II and Element Enduro line of RC trucks. These scale axles are cast from a high grade aluminum alloy and come with integrated suspension link mounts that construct a single, hardened unit. Solid and maneuverable, this set features universal style XVD shafts that deliver a tighter turning radius and high strength driveline. Bringing the Axial SCX10 II and Element Enduro RC trucks upgraded soundness, the ring and pinion gears are a CNC machined, hypoid tooth design and are linked to a 6 bolt hardened steel locker. The C-hubs feature interlocking grooves on the front axle which enables caster customization and the front pumpkin is offset providing more ground clearance. All of this is packed into a high strength cast aluminum case with a long lasting powder-coated finish.
Specifications:
- Cast Light Weight Aluminum Housing
- Hardened Steel Ring and Pinion Gears
- 5mm Axle Output Shaft
- Full Ball Bearings
- Powder-coated in Black
- Width: 189.6mm / 7.46in
- Gear Ratio: 8T/30T
- 12mm Steel Wheel Hex
- Weight: 4.97oz / 141g
Shown installed on Axial SCX10 II for example (Not Included)
What's Included:
- 1x TEQ Ultimate Scale Cast Axle (Rear)
Other TEQ Axles:
- TEQ Ultimate Scale Cast Axle (Front) (Z-A0127)
Replacement Hardware:
- M4 Flanged Lock Nut (Black) (Z-S0620)
- M2 X 3mm Set Screws
- Steel Socket Head Cap Screws M2 x 5mm
- Steel Socket Head Cap Screws M2 x 10mm (Z-S0849)
- Steel Button Head Cap Screws M2 x 4mm
Replacement Parts:
- TEQ Ultimate Scale Cast Axle Diff Cover and Third Member (Z-S1980)
- TEQ Ultimate Scale Cast Axle Housing (Rear) (Z-S1979)
- TEQ Ultimate Scale Cast Axle Straight Axle Shafts (Rear) (Z-S1981)
- TEQ Ultimate Scale Cast Axle Ring and Pinion Gears W/ Locker (Z-G0076)
- TEQ Ultimate Scale Cast Axle Service Kit (Rear) (Z-S2171)
Notes:
- Fits Axial SCX10 II
- Fits Associated Element Enduro
- Please do routine maintenance.?�
- Check the grease around the gears and also oil the bearings.
- Do not over tighten screws as you can strip the holes.?�
- Use Locktite but do not use too much or you can damage the casing.
