Name: TEQ Ultimate Scale Cast Axle FRONT Z-A0127 RC4WD XVD SCX10 II Element Enduro
Brand: RC4WD
SKU: Z-A0127
Price: 99.74 GBP
Availability: InStock

TEQ Ultimate Scale Cast Axle FRONT Z-A0127 RC4WD XVD SCX10 II Element Enduro

(No reviews yet) Write a Review

SKU:

Z-A0127

UPC:

639302593455

Description
Videos
0 Reviews

Description

Additional Information -

TEQ Ultimate Scale Cast Axle (Front)

With improved steering and durability, the TEQ Ultimate Scale Axles are a modern version of the Yota II axles designed as an upgrade for Axial SCX10 II and Element Enduro line of RC trucks. These scale axles are cast from a high grade aluminum alloy and come with integrated suspension link mounts that construct a single, hardened unit. Solid and maneuverable, this set features universal style XVD shafts that deliver a tighter turning radius and high strength driveline. The ring and pinion gears are a CNC machined, hypoid tooth design and are linked to a 6 bolt hardened steel locker. The C-hubs feature interlocking grooves on the front axle which enables caster customization and the front pumpkin is offset providing more ground clearance. All of this is packed into a high strength cast aluminum case with a long lasting powder-coated finish. These RC Axles will look awesome on your custom Axial SC10 II or Element Enduro.

Specifications:

Die Cast Light Weight Metal Housing
Hardened Steel Spool Gears
5mm Axle Output Shaft
Full Ball Bearings
Powder-coated in Black
Width: 189.6mm / 7.46in
Gear Ratio: 8T/30T
12mm Steel Wheel Hex
Weight: 6.24oz / 177g

Shown installed on Axial SCX10 II for example (Not Included)

Shown installed on Element RC Enduro Sendero RTR 1/10 Rock Crawler for example (Not Included)

Images provided by RC4WD team driver Daniel Siegl

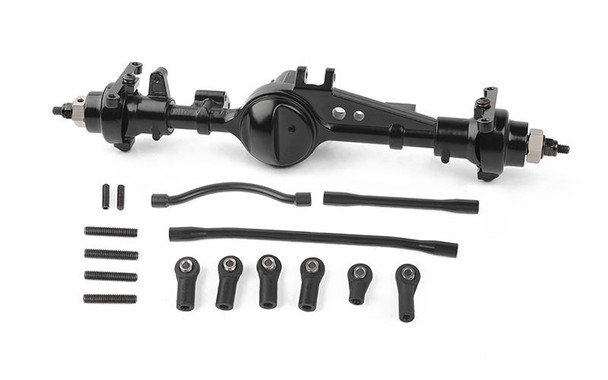

What's Included:

1x TEQ Ultimate Scale Cast Axle (Front)?�
1x 115.8mm Link
1x 63mm Link
1x 66mm Bent Link
1x M3 Plastic Bent Rod End
1x M3 Mini Plastic Rod End
4x RC4WD M3/M4 Plastic Short Rod Ends
2x M3 x 10mm Set Screws
4x M4 x 20mm Set Screws

Other TEQ Axles:

TEQ Ultimate Scale Cast Axle (Rear)?� (Z-A0133)

Replacement Hardware:

M4 Flanged Lock Nut (Black) (Z-S0620)
M2 X 3mm Set Screws
Steel Socket Head Cap Screws M2 x 5mm
Steel Socket Head Cap Screws M2 x 10mm (Z-S0849)
Steel Socket Head Cap Screws M2 x 14mm
Steel Button Head Cap Screws M3 x 8mm (Z-S0652)
M3 Plastic Bent Rod Ends (Z-S0074)
M3 Mini Plastic Rod End (Z-S0398)
RC4WD M3/M4 Plastic Short Rod Ends (Z-S1378)
M3 X 10mm Set Screw (Z-S0308)
M4 20mm Long Threaded Shaft (Set Screws) (Z-S0030)

Replacement Parts:?�?�?�

TEQ Ultimate Scale Cast Axle Steering Knuckles and C-Hubs (Z-S1975)
TEQ Ultimate Scale Cast Axle Diff Cover and Third Member (Z-S1980)
TEQ Ultimate Scale Cast Axle Housing (Front) (Z-S1976)
Replacement Steering Knuckles and C-Hubs for TEQ Ultimate Scale Axles (Z-S1975)
Steering and Panhard links for TEQ Axle (Z-S1977)
TEQ Ultimate Scale Cast Axle XVD Universal Axle Shafts (Front) (Z-S1978)
TEQ Ultimate Scale Cast Axle Ring and Pinion Gears W/ Locker (Z-G0076)
TEQ Ultimate Scale Cast Axle Service Kit (Front) (Z-S1985)

Notes:

Fits Axial SCX10 II
Fits Associated Element Enduro
To install on Element Enduro chassis you will need to use the stock panhard and drag link.
To retain a centered front axle the stock panhard link and drag link will need to the lengthened by loosening the rod ends 1-2 revolutions.
Please do routine maintenance.?�
Check the grease around the gears and also oil the bearings.
Do not over tighten screws as you can strip the holes.?�Use Locktite but do not use too much or you can damage the casing.
