RC4WD

D44 Link Set for SCX10 CMS (SCX10 Width) Z-S1072 RC4WD replaces Z-S0923 links

(No reviews yet) Write a Review
SKU:
Z-S1072
UPC:
639302578889
  • D44 Link Set for SCX10 CMS (SCX10 Width) Z-S1072 RC4WD replaces Z-S0923 links
  • D44 Link Set for SCX10 CMS (SCX10 Width) Z-S1072 RC4WD replaces Z-S0923 links
RRP £13.49

Description

Additional Information -

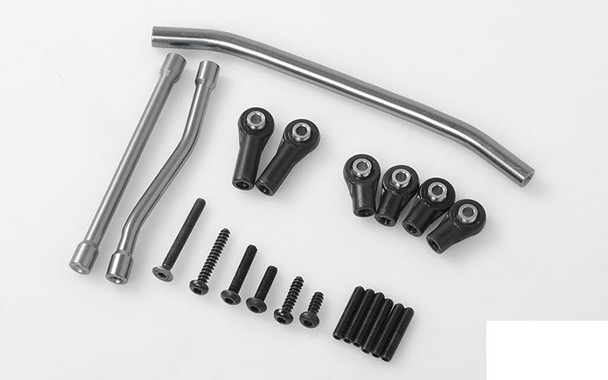

D44 Link Set for SCX10 CMS (SCX10 Width)
https://www.beadlok.com/product/images/626/D44%20Axles_Text%20White.jpg


Specifications:
  • CNC Machined Aluminum
  • Weight: 0.91oz / 26g

What's Included:

  • 1x 112.87mm Bent link (Dark Grey)
  • 1x 69 mm Bent link (Dark Grey)
  • 1x 69mm link (Dark Grey)
  • 6x M3 x 15mm SSS (Z-S0650)
  • 2x M3 Medium Straight Plastic Rod End (Z-S0399)
  • 4x M3 Mini Plastic Rod End (Z-S0398)
  • 1x M3 x 16mm BHCS (Z-S0656)
  • 1x M3 x 12mm BHCS (Z-S0654)
  • 1x M3 x 25mm FHSH (Black)
  • 1x Button Head Self Tapping Screws M3 X 12mm (Black) (Z-S1691)
  • 1x Button Head Self Tapping Screws M3 X 18mm (Black) (Z-S1693)
  • 1x Button Head Self Tapping Screws M3 X 8mm (Black) (Z-S1576)

Optional Parts:

  • D44 Steering Knuckles (Z-S0955)
  • XVD Axle Shafts for D44 Narrow Front Axle (SCX10 Width) (Z-S0989)
  • D44 Panhard Mount for SCX10 CMS (SCX10 Width) (Z-S1071)
  • D44 Narrow Front Axle Upper Link Mount (SCX10 Width) (Z-S1024)
  • Metal Shield Bearing 5 x 11 x 4mm (Z-S0683)
  • Metal Shield Bearing 10 x 15 x 4mm (Z-S0837)
  • 2x 12mm Hexes (Z-S0238)
  • M2 x 10 Axle Hex Pins (Z-S0277)
  • 4mm Lock Nuts (Z-S0620)
  • M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
  • M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
  • M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)
  • M3 Medium Straight Aluminum Rod Ends (Black) (10) (Z-S1644)
  • M3 Short Straight Aluminum Rod Ends (Silver) (10) (Z-S1630)
  • M3 Short Straight Aluminum Rod Ends (Red) (10) (Z-S1632)
  • M3 Short Straight Aluminum Rod Ends (Blue) (10) (Z-S1634)
  • M3 Short Straight Aluminum Rod Ends (Black) (10) (Z-S1636)

Notes:
  • For more information on D44 Axles and parts, please click here. D44 Axle Information Page
  • This link set is used to replace the link set on the CMS (Z-S0923) so you can fit the new D44 Axle
  • Fits D44 Narrow Front Axle (SCX10 Width)
