RC4WD
Twister Low Profile Metal Gear Digital Shift Servo Z-E0117 RC4WD 25t TF3
(No reviews yet)
Write a Review
- SKU:
- Z-E0117
- UPC:
- 639302602393
On Sale
Description
Additional Information -
Twister Low Profile Metal Gear Digital Shift Servo
Specifications:
- Dimensions: 2.14*0.78*1.29in / 54.5*20*32.9mm
- Weight: 1.54oz / 43.8g
- Speed: 0.13sec/60° (@4.8V)
- Stall Torque: 108.27oz·in / 7.8kg·cm (@4.8V)
- Stall Torque: 127.70oz·in / 9.2kg·cm (@6.0V)
- Stall Current: 0.7A (@4.8V), 0.9A (@6.0V)
- Idle Current: 280mA (@4.8V), 370mA (@6.0V)
- Operating Voltage: 4.8-6.0V
- Control Method: PWM
- Pulse Width: 500-2500 µsec
- Servo Wire Length: 8.74in / 222mm
- Center Case: Aluminum
- 25t Spline Servo Arm
- Servo-motor Lock-rotor Protection
- High Efficiency, Low Power Consumption
- Metal Gears Ensure Long Life and Durability
- Not Waterproof
Shown installed on RC4WD Launch Edition Trail Finder 3 RTR for example (Not Included)

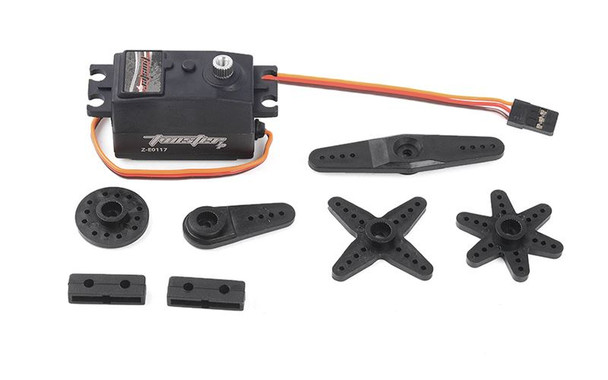

What's Included:
- 1x Twister Low Profile Metal Gear Digital Shift Servo
- 5x Servo Arms
- 2x Rubber Protection Mounting Cases
- 4x Silver Mount Bushings
- 4x M2.3 x 16mm Cross Head Cap Self Tapping Screws (Silver)
- 1x M3 x 6mm Cross Head Cap Screws (Black)
