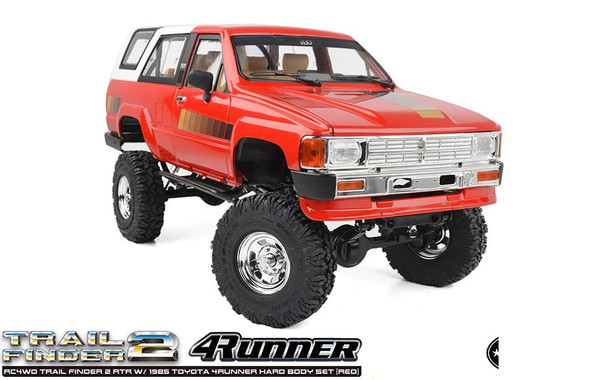

Name: RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set RED Z-RTR0063
Brand: RC4WD
SKU: Z-RTR0063
Price: 641.24 GBP
Availability: InStock

Description
Videos
0 Reviews

Description

RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red)

This is the all new Licensed RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red). This has been Officially Licensed by Toyota and is only available from RC4WD and our Dealers

Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the Trail Finder 2. Part Scale Truck, Part Adventurer, Your Trail Finder 2 is ready for your mud kicking, trail-loving lifestyle!

The Trail Finder 2 has both detailed styling and aggressive performance. you will find a balance of capability and performance built into every Trail Finder 2. Performance of the Trail Finder 2 is smooth with its R3 single speed transmission, 4wd drivetrain, bulletproof transfer case and quality metal components throughout, The Trail Finder 2 is truly a work of art in both appearance and performance.

Every Trail Finder 2 is compatible with a full range of options and performance parts designed to enhance the Performance and add to the scale look of the true scale 1/10 Off-Road Truck... The Trail Finder 2!

Your Adventure Awaits!
NOW WITH NEW UPGRADES!

1/10 1985 Toyota 4runner Hard Body Complete Set in Red

Pre-painted White Topper

Pre-installed Led Light Set

Fully Detailed Yota 22RE Engine Bay

Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)

RC4WD Milestar Patagonia M/T 1.7" Scale Tires

Yota II Ultimate Scale Cast Axles (XVD)

RC4WD Ultimate Scale Shocks

Soft Steel Leaf Springs

540 Crawler Brush Motor 45T

R3 Single Speed Transmission

Center Mounted Hammer Transfer Case

Twister High Torque Metal Gear Digital Servo

Outcry III Waterproof ESC

6-Cell 3000mAh NIMH W/ XT60 Plug

RC4WD Marlin Crawler Side Plastic Sliders

Front & Rear Inner Fender Set

XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio

Universal NIMH Peak Battery Charger

Uninstalled Plastic Front Winch Bumper

Hammer Transfer Case

Ratio: 1.47: 1

Gears: Wide .8 Mod Steel Gears

Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 4.57:1 Internal

Ratio = 1.78:1

Gears: Wide Steel .8 Mod, Delrin Spur, Slipper

Clutch, Features - Metal Billet Aluminum

Casing, Scale Looking, Motor Mount can be

Rotated to 10 different Positions, Compatible

with other Brand Spurs (Axial, Traxxas,

Robinson)

Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1

Width at Hex: 178.2mm

Trail Finder 2 Chassis Features

Features: Billet Aluminum Constriction, Adjustable Shock Hoops

Drive Shafts

RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02" - 4.33") 5mm Hole

Wheels

Type: Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)

Hub: 12mm Hex

Width: 22.0mm (0.87")

OD: 47.0mm (1.85")

Bumpers

Marlin Crawler Front Plastic Tube Bumper

Marlin Crawler Side Plastic Sliders

Authentic Looking Crawler Style Bumper, High Quality Flexible Plastic, Extremely Durable, Very Scale

TF2 Truck Dimensions

Wheelbase: 287.2mm (11.3")

Width: 207.9mm (8.18")

Height: 228.8mm (9.0")

Ground Clearance: 61.3mm (2.41")

Final Drive Ratio: 31.93:1

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The 4Runner RTR includes the Hammer Transfer Case. Packed with detail, the Hammer features a cast metal exterior and heavy duty .8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the TF2 RTR Drivetrain has the most durable gears RC4WD has to offer so the 4Runner RTR will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Punisher Shafts for the TF2 feature bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

SUSPENSION

The 4Runner RTR Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum frame mounted under cab electronics tray for multiple electronics mounting options.

The 4Runner RTR includes a set of RC4WD Ultimate Scale Shocks. Designed with scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The 4Runner RTR Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available!

The 4Runner RTR includes a set of Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome). These are a stamped steel construction with a clear coat finish.

Every off-road truck needs a tough set of tires, and the 4Runner RTR comes equipped with RC4WD Milestar Patagonia M/T 1.7" Scale Tires compound to deliver the traction needed to get you through the roughest terrain.

DETAILS

The 4Runner RTR has an awesome assortment of scale details including mirrors, door handles, vents and a grill to match the 1:1 real vehicle

The 4Runner Body Set features a plethora of scale characteristics including opening doors, a removable top, and an ultra detailed Yota 22RE Engine Bay.

Comprised of over 20 parts, the 4Runner Body interior comes in durable, molded hard plastic that is professionally painted to match a full scale vehicle. The vents, steering wheel, shift knobs and door handles are all present to show the realism.

The 4Runner has a complete molded plastic engine bay that comes painted with decals installed for an extremely scale appearance.

The interior of the 4Runner is complete with LED light buckets, and an operational tailgate. The interior is painted to match the exterior.

ELECTRONICS

The 4Runner RTR includes a quality XR3 3 channel 2.4Ghz radio system. Use the third channel to control a winch and add even more fun to your scale adventure!

The 4Runner RTR is powered by the nearly indestructible RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you’re sure to get where you’re going.

The 4Runner RTR features the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.

A great truck needs a great servo to get you out of those tough spots and the 4Runner RTR features the Twister. A high torque metal gear digital servo to handle all your steering duties.

Featuring a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance you need when the turning gets tough.

What's Included:

1x RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red)

Replacements Parts:

RC4WD 1985 Toyota 4Runner Hard Body Complete Set (Z-B0167)
Yota 22RE Engine Bay for TF2 Chassis (Z-B0247)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
RC4WD 101mm Hardened Steering Link (Z-S0504)
Hammer Transfer Case (1.47/1) (Z-U0024)
TF2 Long Drive Shaft Coupling for R3 Single Speed (Z-S0898)
R3 Scale Single Speed Transmission (Z-U0028)
Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
RC4WD Marlin Crawler Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
Fuel Cell Radio Box (Z-S0592)
M3 Mini Plastic Rod End (20x) (Z-S0398)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)
Trail Finder 2 Bumper Mounts (Z-S0593)
Leaf Spring Shackles & Mounts Kit (Z-S0047)
Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome) (Z-W0065)
RC4WD Milestar Patagonia M/T 1.7" Scale Tires (Z-T0226)
RC4WD Inner Fender Set for Toyota 4Runner and Xtra Cab (Z-S1950)
Basic Lighting System for Toyota 1985 4Runner and 1987 XtraCab Hard Body V2 (Z-E0039)
The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
540 Crawler Brushed Motor 45T (Z-E0004)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
Outcry III Waterproof ESC (Z-E0113)
RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02" - 4.33") 5mm Hole (Z-S2020)
RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
RC4WD Universal NIMH Peak Battery Charger (Z-E0106)

Optional Parts:

RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
BigDog 1/10 Dual Axle Scale Boat Trailer (Z-H0006)
Low Profile Delrin Transfer Case Mount for TF2 (Z-S1777)
RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (120mm/4.72") (Z-E0095)
Winch (Winch Options)
4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
XVD Axle for Ultimate Scale Yota II G2 TF2/TF3 Axle (Z-S0823)
Scale Aisin/Yota Style Hubs (Z-S0196)
RC4WD Marlin Crawler Front Steel Tube Bumper for Trail Finder 2 (Z-S0778)
Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
RC4WD Marlin Crawler Side Metal Sliders for Trail Finder 2 (Z-S0753)
Red Super Soft Flex Leaf Springs (Z-S0570)
RC4WD King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
RC4WD King Off-Road Scale Dual Spring Shocks (90mm) (Z-D0033)
RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
RC4WD 80mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0036)
Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
The Ultimate Scale Shocks 80mm (Silver) (Z-D0005)
RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0038)
RC4WD Mickey Thompson 1.55" Baja MTZ P3 Scale Tires (Z-T0058)
RC4WD Mickey Thompson 1.55" Baja Claw TTC Scale Tires (Z-T0064)
RC4WD Interco IROK 1.55" Scale Tires (Z-T0056)
Scale Accessories (Click Here)
Truck Bed Mount Angled Spare Tire Carrier (Z-S0358)
Tough Armor Front Tube Bumper w/Winch Mount for Trail Finder 2 (Z-S0765)
Low Profile Delrin Skid Plate for Std. TC (TF2) (Z-S1851)
OEM Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0258)
OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0260)
OEM Stamped Steel 1.55" Beadlock Wheels (Black) (Z-W0262)
OEM Stamped Steel 1.55" Beadlock Wheels (Chrome) (Z-W0264)
RC4WD Interco IROK ND 1.55" Scale Tires (Z-T0163)
RC4WD Bilstein SZ Series 80mm Scale Shock Absorbers (Z-D0072)
RC4WD Bilstein SZ Series 100mm Scale Shock Absorbers (Z-D0074)
RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
RC4WD Ballistic Off Road Rage 1.9'' Beadlock Wheels (Z-W0261)
Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
JK 1.9" Scale Beadlock Wheels (Z-W0151)
RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
Trail Finder 2 Rear Leaf Spring Reverse Mount (Z-S0415)
RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
RC4WD Falken Wildpeak A/T3W 1.55'' Scale Tires (Z-T0169)
Ultra 1.55" Beadlock Wheels (Z-W0268)
Breaker 1.55" Beadlock Wheels (Z-W0273)
TRunner Classic 1.55'' Beadlock Wheels (Z-W0121)
Stamped Steel 1.7" Beadlock Wagon Wheels (Clear) (Z-W0272)
Stamped Steel 1.7" Beadlock Wagon Wheels (Chrome) (Z-W0271)
Stamped Steel 1.7" Beadlock Wagon Wheels (White) (Z-W0269)
Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1923)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Black) (Z-W0281)
Stocker 1.55" Internal Beadlock Wheels (Z-W0276)
Tango Down 1.9" Internal Beadlock Wheels (Black) (Z-W0038)
RC4WD Yota Narrow Offset 1.9" Beadlock Wheels (Z-W0283)
Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0288)
Tough Armor Tube Winch Bumper for 1985 Toyota 4Runner (Z-S1904)
RC4WD Goodyear Wrangler Duratrac 1.55" 4.19" Scale Tires (Z-T0177)
RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
RC4WD Fuel Zephyr Beadlock Wheels 1.9" (Z-W0294)
RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
RC4WD Milestar Patagonia A/T 1.7" Tires (Z-T0181)
RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.9" Wheels (Z-W0293)
RC4WD Dirty Life RoadKill 1.7" Beadlock Wheels (Silver) (Z-W0298)
Classic 10-Hole Chrome 1.9" Beadlock Wheels (Z-W0296)
RC4WD Interco Narrow TSL SS 1.55'' Scale Tires (Z-T0182)
RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
RC4WD Level 8 Bully Pro 6 1.9" Beadlock Wheels (Z-W0300)
RC4WD ION Style 71 1.9" Beadlock Wheels (Z-W0303)
RC4WD Dirty Life MB 1.9" Beadlock Wheels (Z-W0306)
OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0308)
RC4WD ARB Intensity LED Light Set (Z-E0112)
RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
RC4WD TUFF T21 1.9" Internal Beadlock Wheels (Z-W0307)
RC4WD Ridler 645 1.9" Internal Beadlock Wheels (Z-W0305)
RC4WD Walker Evans 501 Legend 1.7" Beadlock Wheels (Z-W0320)
RC4WD Raceline Monster Deep Dish 1.7" Beadlock Wheels (Z-W0304)
Rally 1.9" Beadlock Wheels (Gold) (Z-W0324）
RC4WD Enforcer 1.9" Beadlock Wheels (Red) (Z-W0323)
RC4WD Rogue 1.9" Beadlock Wheels (Z-W0314)
RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9" Scale Tires (Z-T0187)
RC4WD BFGoodrich All-Terrain K02 1.9" Scale Tires (Z-T0188)
RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
RC4WD Michelin Agilis C-Metric 1.9" Tires (Z-T0193)
RC4WD Michelin LTX A-T2 1.7" Tires (Z-T0194)
RC4WD Falken Wildpeak A/T Trail 1.9" Scale Tires (Z-T0195)
Mud Hogs 1.55'' Scale Tires (Z-T0029)
RC4WD Mickey Thompson Baja Pro X 4.19 1.7 Scale Tires (Z-T0196)
Rocky Country 1.55" Truck Tires (Z-T0022)
Stamped Steel 1.7" 10-Oval Hole Wheels (Plain) (Z-W0312)
Stamped Steel 1.7" 10-Oval Hole Wheels (Black) (Z-W0313)
Stamped Steel 1.7" Beadlock Wagon Wheels (Black) (Z-W0270)
Breaker 1.9" Beadlock Wheels (Gold) (Z-W0325)
1.9" 5 Lug Steel Wheels w/Beauty Ring (Silver) (Z-W0327)
Double Steel Tube Rear Bumper for 1987 XtraCab Hard Body (Z-S2142)
Double Steel Tube Front Bumper (1987 XtraCab / 1985 4Runner) (Z-S2141)
Bumper Mount for Double Steel Tube Front Bumper (1987 XtraCab / 1985 4Runner) (Z-S2172)
Basic Lighting System for Toyota 1985 4Runner and 1987 XtraCab Hard Body (Z-E0123)
Helical Gear Set for 1/10 Yota and K44 Axles (Z-G0059)
Anti Wrap Bar for Yota 2 Axles (Z-S0782)
Scale Steel Punisher Shaft V2 (100mm - 130mm / 3.94'' - 5.12'') (Z-S1087)
Scale Steel Punisher Shaft V2 (90mm - 115mm / 3.54'' - 4.53'') (Z-S1118)
101mm Hardened Steering Link (Z-S0504)
CNC Rear Bumper for 1985 Toyota 4Runner (Z-S0480)

Recommended Tools/Supplies:

Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Medium (Blue) Thread Lock
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Phillips Screwdrivers (small)
Grease and Lubrication (Z-S1199) (Z-S1197)

Instruction Manuals:

RTR Instructions (Download Here)
Body Instructions (Download Here)

Press Information:

Click here to download.

Notes:

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.

Toyota is a registered trademark of the Toyota company. The Toyota logo is property of Toyota and used under license to RC4WD.

View AllClose
