Name: RC4WD Gelande 2 Truck 1/10 Scale Builders Kit Z-K0071 G2 Chassis 275 Cruiser D90
Brand: RC4WD
SKU: Z-K0071
Price: 379.99 GBP
Availability: OutOfStock

Description
0 Reviews

Description

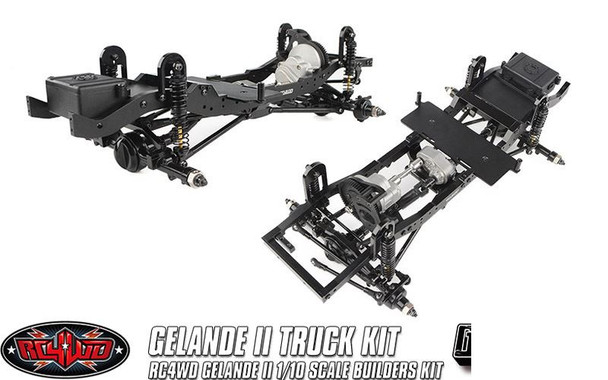

RC4WD Gelande II Truck 1/10 Scale Builders Kit

Experience the versatility and innovative design of the Gelande II firsthand! Now featuring exciting new upgrades, the Gelande II comes ready for challenging terrains. Put your off-road skills to the test and discover why the Gelande II is a fan favorite!

The Gelande II comes with a 4-link rear and 3-link Panhard rod suspension as a standard feature. The chassis-mounted servo is out of view for added realism.

The Gelande II platform is incredibly versatile, offering a wide range of styles and looks to bring any off-road enthusiast’s vision to life. With countless customization options, RC4WD allows you to personalize your Gelande II without sacrificing performance. Whether you're building an emergency vehicle, expedition rig, scale replica, or hard-core rock crawler, this unit is ready to explore endless possibilities!

Realistic Billet Aluminum Ladder Frame Chassis

R3 Single-Speed Transmission

Center Mounted Realistic 4x4 Transfer Case

Metal Drive Coupling for Gelande II

Yota II Ultimate Scale Cast Axle V2 (XVD)

Dual Spring 80mm Scale Black Shocks (Ver 3) (X-Ring)

Aluminum Shock Hoops for Gelande II Chassis

Fuel Cell Radio Box

Hammer Transfer Case

Ratio: 1.47:1

Gears: Wide .8 Mod Hardened Steel Gears

Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57

Internal Ratio: 1.78:1

Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1

Width at Hex: 178.2mm

Gelande II Chassis Set

Smooth Anodized Black Finish Integrated Notches for Cross Braces

Drive Shafts

High Quality Plastic Material Durable Steel Yokes

Gelande II 1/10 Scale Builders Kit Dimensions

Wheelbase: 275mm (10.8")

Length: 440mm (17.3")

Width: 220mm (8.7")

Height: 140mm (5.5")

Ground Clearance: 50mm (1.97")

Final Drive Ratios: 31.9:1

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.

The Gelande II includes the new Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy-duty .8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the Gelande II drivetrain has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale-accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axle V2 (Front/Rear) set the standard for scale realism, featuring 8-degree round knuckles, removable diff covers, lower mounting points, and a compact offset pumpkin.

The driveshafts found on the Gelande II Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

SUSPENSION

The all-new Gelande II Chassis is a machined billet aluminum ladder frame with an all-link suspension design, scale shock hoops, chassis servo mounts, and hard body mounting points for the ultimate in strength.

The Gelande II includes a set of new RC4WD Dual Spring Scale Black Shocks 80mm V3. With an all-new design, the shocks come with our new X-ring tech that provides multiple sealing points for superior protection against leaks and contamination, ensuring cleaner operation, longer performance life, and reliability!

The Gelande II Chassis Set is CNC machined with a smooth anodized black finish and integrated grooves for cross-bracing, giving it more texture and stability.

Dominate tough terrain with RC4WD Steering Links. Perform sharp turns and experience immediate responsiveness. Crafted from premium materials, these links deliver unmatched durability and control.

This Metal Drive Coupling is made of hardened steel, which provides sufficient durability, extending the lifespan of your drivetrain and withstanding the stresses of high-torque.

Shown installed with RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109), Scrambler Offroad 1.9" Scale Tires (Z-T0144) and 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome) (Z-W0002) for example (Not Included)

What's Included:

1x RC4WD Gelande II Truck 1/10 Scale Builders Kit

This is a kit that requires building time (appro. 2-3 hours), electronics, tires and wheels.

Required to Complete:

Truck Kit

Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Associated Thread Locking Adhesive
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics:

Motor (35t, 45t, or 55t)
Radio and Receiver (2 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
1x Twister High Torque Metal Gear Digital Servo (Z-E0035)
Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
Charger (Consult your battery guide) Chargers

Suggested Bodies

RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109)
RC4WD 2015 Land Rover Defender D90 Body Set (Z-B0215)

Replacements Parts:

RC4WD Yota II Ultimate Scale Cast Axle V2 (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
Gelande 2 Chassis Set (Z-C0040)
RC4WD Dual Spring Scale Black Shocks 80mm V3 (Z-D0041)
RC4WD 120mm Hardened Steering Link (FOA) (Z-S0194)
M3 Mini Plastic Rod End (20x) (Z-S0398)
M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
M3 Short Bent Plastic Rod End (20x) (Z-S0402)
14t 32p Hardened Steel Pinion Gear (Z-S0430)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)
Fuel Cell Radio Box (Z-S0592)
2mm Black Spacer with M3 Hole (10) (Z-S0600)
Servo Mounts for Gelande 2 Chassis (Z-S0791)
Battery Plate for Gelande 2 (Z-S0792)
Gelande II Electronics Deck (Z-S0793)
Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
Gelande 2 Rear 4 Link Mount (Z-S0795)
Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
R3 Single Speed Transmission Mounts (Z-S0802)
Metal Drive Coupling for Gelande 2 (Z-S0803)
M3 Driveshaft Screw Pin (5) (Z-S0804)
73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
3mm Black Spacer with M3 Hole (10) (Z-S0806)
59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
5mm Black Spacer with M3 Hole (10) (Z-S0821)
RC4WD Plastic Punisher Shaft V2 (95mm - 100mm / 3.74" - 3.94") 5mm Hole (Z-S2019)
Scrambler Offroad 1.9" Scale Tires (Z-T0144)
Hammer Transfer Case (1.47/1) (Z-U0024)
Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
R3 Scale Single Speed Transmission (Z-U0028)

Optional Parts:

K44 Ultimate Scale Cast Rear Axle (Z-A0096)
K44 Ultimate Scale Cast Front Axle (Z-A0101)
RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109)
RC4WD 2015 Land Rover Defender D90 Body Set (Z-B0215)
RC4WD King Off-Road Racing Shocks (80mm) (Z-D0006)
RC4WD King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
540 Crawler Brushed Motor 80T (Z-E0001)
540 Crawler Brushed Motor 65T (Z-E0002)
540 Crawler Brushed Motor 55T (Z-E0003)
540 Crawler Brushed Motor 45T (Z-E0004)
540 Crawler Brushed Motor 35T (Z-E0005)
RC4WD 1/10 Mini Warn 9.5cti Winch (Z-E0009)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)
RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)
540 Crawler Brushed Motor 20T (Z-E0065)
540 Crawler Brushed Motor 27T (Z-E0067)
RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
Outcry III Waterproof ESC (Z-E0113)
Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
RC4WD KC HiLiTES Rectangle Lights with Covers (Z-E0132)
XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
RC4WD Radio and Receiver for Miller Motorsports Pro Rock Racer (Z-R0013)
RC4WD 1/8 Scale Rear Hubs (Black) (Z-S0014)
RC4WD 1/8 Scale Rear Hubs (Chrome) (Z-S0033)
RC4WD 1/10 Scale Rear Hubs (Chrome) (Z-S0034)
Scale Aisin/Yota Style Hubs (Z-S0196)
RC4WD 1/10 Warn Scale Manual Locking Hubs (Z-S0720)
RC4WD Drive Flange Wheel Nut Cover (Z-S0756)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
XVD Axle for Ultimate Scale Yota II G2 TF2/TF3 Axle (Z-S0823)
Gelande 2 Steering Guard (Z-S0824)
RC4WD Mickey Thompson Metal Series 1/10 Wheel Center Caps (2) (Z-S0850)
RC4WD ARB Front Winch Bar Bumper for Gelande II D90/D110 (Z-S0853)
RC4WD Billet Aluminum Fuel Cell Radio Box (Black) (Z-S1093)
Scale Steel Punisher Shaft V2 (90mm - 115mm / 3.54'' - 4.53'') (Z-S1118)
RC4WD Billet Aluminum Fuel Cell Radio Box (Red) (Z-S1122)
RC4WD 1/8 Warn Scale Manual Locking Hubs (Z-S1224)
RC4WD 1/10 Scale Rear Hubs (Black) (Z-S1266)
Gelande II Leaf Spring Kit (Z-S1752)
Low Profile Delrin Skid Plate for Std. TC (D90/D110/Cruiser) (Z-S1807)
RC4WD Rancho Diff Cover for Yota II Axle (Z-S1924)
RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
Mud Thrashers 1.9" Scale Tires (Z-T0051)
RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires (Z-T0107)
RC4WD Mickey Thompson 1.7" Baja Claw TTC Radial Scale Tires (Z-T0111)
RC4WD Fuel Off-Road Mud Gripper M/T 1.7" Scale Tires (Z-T0133)
Scrambler Offroad 1.55" Scale Tires (Z-T0152)
RC4WD Goodyear Wrangler MT/R 1.9" 4.19" Scale Tires (Z-T0160)
RC4WD Goodyear Wrangler® All-Terrain Adventure 1.9" Tires (Z-T0170)
RC4WD Goodyear Wrangler Duratrac 1.55" 4.19" Scale Tires (Z-T0177)
RC4WD Milestar Patagonia M/T 1.9" Scale Tires (Z-T0178)
RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
RC4WD Michelin Agilis C-Metric 1.9" Tires (Z-T0193)
RC4WD Falken Wildpeak A/T Trail 1.9" Scale Tires (Z-T0195)
RC4WD Interco Super Swamper TSL Thornbird 1.7" Scale Tires (Z-T0208)
RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires (Z-T0225)
RC4WD Center Line 1.55" Scorpion Deep Dish Wheels (Z-W0014)
RC4WD XD 1.7" XD849 Grenade 2 Deep Dish Beadlock Wheels (Z-W0041)
RC4WD Warn 1.7" Epic Jack Hammer Wheels (Z-W0086)
RC4WD American Racing 1.9" Outlaw II Deep Dish Beadlock Wheels (Z-W0088)
RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
RC4WD Fuel Off-Road Maverick 1.9" Beadlock Wheels (Z-W0200)
RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
RC4WD Fuel Off-Road Zephyr Beadlock Wheels 1.9" (Z-W0294)
Classic 10-Hole Chrome 1.9" Beadlock Wheels (Z-W0296)
RC4WD ION Style 71 1.9" Beadlock Wheels (Z-W0303)
RC4WD Fuel Off-Road 1.55'' Zephyr Beadlock Wheels (Gunmetal) (Z-W0333)
Grid Design Steering Guard for Gelande II (D90/D110) (VVV-C0239)
Rear Winch Bumper for Gelande II (D90/D110) (VVV-C0244)
Metal Front Bumper w/Stinger for Gelande II D90/D110 (VVV-C0285)
Metal Exhaust for Gelande II D90 (VVV-C0287)
Front Tube Bumper for Gelande II (D90/D110) (VVV-C0455)
Rear Tube Bumper for Gelande II (D90/D110) (VVV-C0456)
Hull Front Bumper W/ Steering Guard for Gelande II (D90/D110) (VVV-C0707)
Hull Front Bumper W/ Steering Guard and IPF Lights for Gelande II (D90/D110) (VVV-C0708)
Oxer Transfer Case Guard for Gelande II 2015 Land rover Defender D90 (VVV-C1082)
Steel Steering Guard for RC4WD Gelande II 2015 Land Rover Defender D90 (Silver) (Pick-up/SUV) (VVV-C1084)
Classic Front Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Silver) (VVV-C1116)
Classic Front Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Black) (VVV-C1117)
Classic Front Winch Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Silver) (VVV-C1118)
Classic Front Winch Bumper for RC4WD Gelande II 2015 Land Rover Defender D90 (Black) (VVV-C1119)
RC4WD Inner Fender Set for 2015 Land Rover Defender D90 (Z-S0297)

Instruction Manuals:

Click here to download

Press Information:

Click here to download

Notes:

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock sparingly.
Do not over tighten screws, otherwise you may strip the thread.
