Name: RC4WD Carbon Assault 1/10th Monster Truck KIT Z-K0066 parts required to complete
Brand: RC4WD
SKU: Z-K0066
Price: 651.69 GBP
Availability: InStock

Description
Videos
0 Reviews

Description

Additional Information -

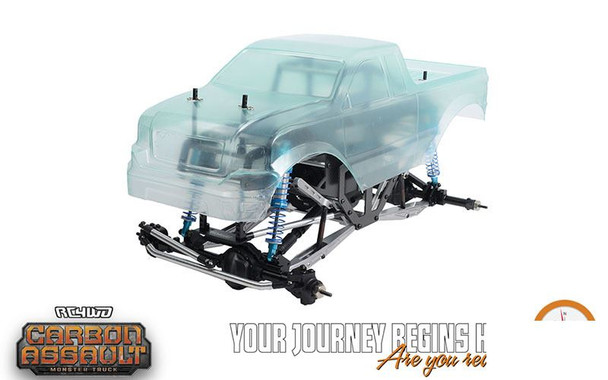

RC4WD Carbon Assault 1/10th Monster Truck Builder's Kit w/ Manticore Lexan Body Set

Behold, RC4WD?�?�?�s first ever Racing Monster Truck, the Carbon Assault! Created with premium parts and boundless customization, it uses proven suspension geometry and a light-weight carbon fiber chassis coupled with rugged CNC billet aluminum chassis components. The Carbon Assault Builder's Kit is only limited by your creativity, a great starting point for any builder looking for a high performance monster truck kit.

The Carbon Assault Monster Truck incorporates a chassis with multiple suspension mounts for various arrangements, suspension links that mimic dimensions of proven setups and a robust AX2 2-Speed transmission with hardened steel gears and a second gear for increased speed. The box includes 1 body and a complete sticker sheet featuring the epic Carbon Assault Logo.

The Carbon Assault has components and features never seen on a monster truck kit before. This truck is loaded with premium parts and will give hours of fun and a superior platform for the advanced builder.

CNC Machined 2MM Carbon Fiber Chassis

CNC Billet Aluminum Chassis Braces & Skid Plates

CNC Billet Aluminum Axle Tubes & Trusses

AX-2 Speed Transmission

RC4WD Wide D44 Front & Rear Axles

Adjustable Front & Rear Sway Bars

King Off-Road Racing Dual Spring Shocks

Lexan Monster Truck Body w/ Complete Decal Sheet

Dual Electronics Mounting Plate

Servo Mount for D44 Wide Axles

CNC Machined Trailing Arms

RC4WD Plastic Punisher Shaft V2

AX2 2 Speed Transmission Transmission

CNC Machined Billet Aluminum

15T 32P Steel Pinion

60T 32P Delrin Spur

Gear Ratio Pinion / Spur Ratio = 4:1

2 Speed

Wide Steel 48 Pitch Internal Gears

1st Gear Ratio = 5.05:1

2nd Gear Ratio = 1.78:1

Gears: Wide Steel, Delrin Spur, Slipper Clutch

D44 Wide Axle

Ratio: 2.9 : 1

Pinion Gear: 0.8 Mod 13T

Hex Width: 242mm

Hardened Steel Gears

Case Material: Reinforced Nylon Plastic

CNC Billet Aluminum Trusses and Tubes

Carbon Assault Suspension

4 Link Front and Rear Suspension

Shock Absorbers

King Off-road Dual Spring Shocks (110mm) - Can Be Oil Filled

Carbon Assault Dimensions

Wheelbase: 358mm (14.1")?�

Width: 266mm (10.5")

Height: 244.3mm (9.6")?�

Final Drive Ratio: 2.9 : 1

Weight: 4.23Lbs / 1.92Kg

DRIVETRAIN

The Carbon Assault comes with the AX2 2-Speed Transmission, a battle-tested design that consists of a CNC alloy case and hardened steel gears with a first and second gear shift setting to set to your preference. The machined delrin spur gear and slipper pad help prevent damage to the gears which will keep your truck running longer.

The RC4WD Plastic D44 Wide Front and Rear Axles feature a center rear diff housing for a more realistic look. The front axle has 8 degree knuckles, adjustable caster, removable diff covers, hardened steel gears and XVD axles. RC4WD also offers a differential gear set for the D44 axles.

The axles come with upgraded CNC axle trusses and aluminum axle tubes. By using aluminum instead of plastic, we can ensure these components stand up to the rigorous demands of a racing monster truck.

The driveshafts for the Carbon Assault are designed with heavy duty metal uni-joints with tough plastic shafts for great driveline angles and power delivery.

SUSPENSION

The officially licensed King Off-Road Racing Shocks are the most realistic scale shocks on the market. They feature CNC billet aluminum, faux piggyback reservoirs and can be oil-filled. The finish is polished aluminum with blue anodized details and laser etched King Off-Road Racing Shocks logos. Optional spring sets are available from RC4WD for even more tuning.

The front and rear sway bars come standard on this chassis. They are milled from billet aluminum and can be mounted in two different locations for maximum tuning.

The upper and lower suspension arms are mounted to a CNC center skid plate. The links are made from Billet aluminum featuring our robust M4 size rod ends. The lower suspension arms have recessed rod ends for added durability.

The chassis features inward and outward mounting options for the shocks and the sway bars. This is made possible by eight CNC shock mounts, each with 3 different mounting positions. The sway bars are mounted by small aluminum stays keeping them firmly attached.

DETAILS

The chassis also has plenty of great design elements including the realistic monster truck profile appearance, laser etched logos on all the CNC parts and engraved RC4WD on the lower carbon fiber chassis.

The RC4WD Manticore Lexan Body Set has distinct styling with a molded in front bumper, and grille details. The crisp body lines and high wheel arches perfectly mimic full size Monster truck body styles. Separate front and rear light buckets for LEDs are also included in the box.

The sticker sheet for this truck has an all new mascot. Carbon Assault isn?�?�?�t just a name, it?�?�?�s a mindset that is reflected in the included graphics. It means innovation, speed and down right performance. Use the graphics included for the pre-painted body or create your own paint scheme to take on the competition.

?�

What's Included:

1x RC4WD Carbon Assault 1/10th Monster Truck Builder's Kit w/ Manticore Lexan Body Set

This is a kit that requires building time (approx. 2-3 hours), electronics, tires and wheels.

Required to Complete:

Truck Kit

Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Associated Thread Locking Adhesive
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

Motor (35t 45t or 55t)
Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
Radio and Receiver (3 Channel Z-R0009, or 4 Channel Z-R0006)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
Charger (Consult your battery guide) Chargers

Replacements Parts:

RC4WD Plastic D44 Wide Rear Axle (Wraith/AR60 Width) Carbon Assault (Z-A0135)
RC4WD Plastic D44 Wide Front Axle (Wraith/AR60 Width) Carbon Assault (Z-A0134)
RC4WD Carbon Assault 1/10th Monster Truck Chassis (Z-S2006)
RC4WD Manticore Lexan Body Set (Z-B0224)
Trail Finder 2 Plastic Body Posts (Z-B0029)
D44 Wide Link Mounts (Z-S2025)
Servo Mount for D44 Wide Axles (Z-S2026)
Steering Links for Wide D44 Axles (Z-S2027)
Battery Mounting Plate for Carbon Assault 1/10th Monster Truck (Z-S2031)
RC4WD Plastic Punisher Shaft V2 (124mm - 165mm / 4.88" - 6.50") 5mm Hole (Z-S2021)
(Z-U0006)
Sway Bar for Carbon Assault 1/10th Monster Truck (Z-S2007)
Trailing Arm for SMT10, Yeti, Bomber, Carbon Assault 1/10th Monster Truck (Z-S2008)
Upper Links for Carbon Assault 1/10th Monster Truck (Z-S2009)
RC4WD M3/M4 Plastic Short Rod Ends (Z-S1378)

Optional Parts:

Mud Slingers Clod TXT-1 Tires (Z-T0084)
(Z-T0018)
The Rumble Monster Truck Racing Tires (Z-T0015)
Traxtor XL Pulling Clod TXT-1 Jugg Tires (Z-T0104)
Rumble Monster Truck Racing Tires X2S?�?? (Z-T0174)
Ignitor 2.6" Monster Truck Racing Beadlock Wheels (Z-W0282)
Universal Monster Truck Beadlock Wheels V2 For Tamiya Clod Buster (Black Delrin) (Z-W0147)
Universal Monster Truck Beadlock Wheels V2 For Clod Buster (Aluminum) (Z-W0004)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
RC4WD Universal NIMH Peak Battery Charger (Z-E0106)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
540 Crawler Brushed Motor 27T (Z-E0067)
Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
XT60 Female to Tamiya Male Connector Adapter (Z-E0072)
540 Crawler Brushed Motor 35T (Z-E0005)
540 Crawler Brushed Motor 45T (Z-E0004)
RC4WD ARB Intensity LED Light Set (Z-E0112)
RC4WD 1/10 Baja Designs Squadron Pro LED Lights (Z-E0066)
RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)
RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)
Twister Ultimate High Performance Waterproof Servo (Z-E0063)
XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
Brass Knuckle Bushings for D44 Axle (8) (Z-S1716)
Differential Gear Set for D44 and Axial Axles (Z-G0079)
Heavy Duty Bevel Gear Set 43T/13T (Z-G0072)
Heavy Duty Bevel Gear Set 36T/14T (Z-G0080)
Heavy Duty Bevel Gear Set 38T/13T (Z-G0071)
Heavy Duty Differential Locker (Z-S1682)
XVD Shafts for D44 Wide Front Axle (Wraith Width) (Z-S1020)
D44 Steering Knuckles (Z-S0955)
Tough Armor Overland Roof Rack for Traxxas TRX-4 (Z-S2001)
Trailing Arm for SMT10, Yeti, Bomber, Carbon Assault 1/10th Monster Truck (Z-S2008)
Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
Aluminum C Hubs for D44 Wide Axles (Z-S2069)

Instruction Manuals:

Click here to download

Press Information:

Click here to download

Items of Interest: (not required for completion)

Paint for body
Grease and Lubrication (Z-S1199) (Z-S1197)
Double Sided Tape for ESC (Z-S0934)

Notes:

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws, otherwise you may strip the thread.
