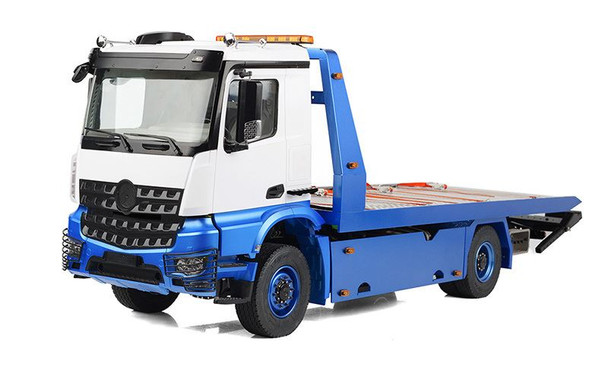

1/14 4x4 Wrecker Flat Bed Hydraulic Tow Truck VV-JD00068 RC4WD Recovery Rescue

(No reviews yet) Write a Review

SKU:: VV-JD00068
UPC:: 639302615720
MPN:

On Sale

MSRP: £3,720.99

Now: £3,534.94

Was: £3,720.99

— You save £186.05

Current Stock:

Out of Stock - On Order with Supplier

Description
Videos
0 Reviews

Description

Additional Information -

SPECIAL ORDER - 1/14 4x4 Wrecker Flat Bed Hydraulic Tow Truck

Notice: This product is for experienced RC hobbyists. This is not recommended for anyone under the age of 16.

Specifications:

Hard Plastic European Style Front Cab
Full Metal 3 Speed Transmission (Planetary Gears)
Transfer Case (Billet Aluminum)
Simulation Air Suspension
Scale Wheels and Tires (Wheels: Stainless Steel / Billet Aluminum)
Remote Lockable Front and Rear Axle (Locking Differential)
Full Metal Front and Rear Axle Housing
Steel Scale Drive Shaft
Front Cab Latch
Molded Fuel Tank
Rear Light Guard (Protects Against Rocks)
Scale Light Buckets (Fits 3-5mm LED)
Flatbed Winch
Rear Underlift
Recommended Payload: 10kg / 22lbs
Rear Underlift Payload: 3.00kg / 6.61lbs
LiPo Cutoff
Fully Painted
Brushed Driven Motor
930KV Brushless Motor-Driven Micro Hydraulic Pump
Length: 728mm / 28.6in
Width: 218.5mm / 8.60in
Height: 277.5mm / 10.9in
Weight: 6.5kg / 14.3lbs
Hydraulic Oil Type: 32# / 46#
Working Oil Pressure: 3MPa
Bed Maximum Lifting Angle: 14
First Gear 1/113, Second Gear 1/86.4, Third Gear 1/62.1 (Transmission)
18 Channel 2.4Ghz Radio
4 Pack 2in x 15in Orange Ratchet Strap with J Hooks

Shown with RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set (Z-RTR0045) for example (Not Included)

What's Included:

1x 1/14 4x4 Wrecker Flat Bed Hydraulic Tow Truck

Required Parts:

5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 140mm in length, 45mm in width, and 25mm in height)
Compatible Battery Charger
Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Replacement Parts:

Earth Digger 4200XL Excavator Brushed ESC (VVV-S0011)
Hydraulic Connector M5 x 4mm Tube (90deg) (VVV-S0069)

Instruction Manual:

Click here to download.

Notes:

Do not operate the lift past its fully-extended height and do not operate at its highest limit for longer than 2 seconds as these positions can damage the hydraulic system.
Do not use more than 3S battery. (11.1 volt(s))
Must turn on the transmitter before starting the ESC.
ESC Supports XT60 Connector
While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
Use good quality hex drivers to avoid stripping screw heads.
This product is for experienced R/C users. Not recommended for beginners.
The axle hubs can be removed, but may require additional force.
This JDM Product ships in carton packaging with a padded shipping crate inside for added protection.
This shipping crate solely protects this JDM product through the shipping process. Any other case utilization is outside of its intended purpose.
This Product Is Professionally Pre-Assembled.
Manufactured by JDCustoms 30 Days Limited Warranty.
