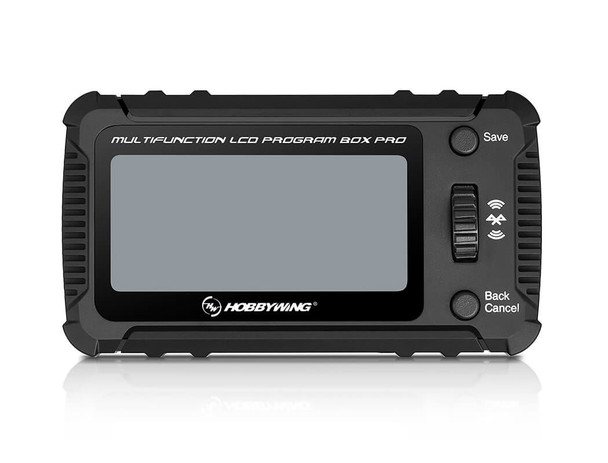

Hobbywing Multifunction LCD Program Box Pro HW30502002 PC / Bluetooth Bat Meter

Additional Information -

HOBBYWING MULTIFUNCTION LCD PROGRAM BOX PRO

Features

• As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).
• Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.
• The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.
• Detect the overall voltage of the lithium battery and the individual voltage of each cell.
• The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.

Specifications

Size:105.6x59x24.4mm(LxWxH)
Weight:85g
Input Voltage:5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)
Interface:TYPE-C USB,ESC interface(Futaba plug), Power supply interface(Futaba plug)
Display Screen:LCD
