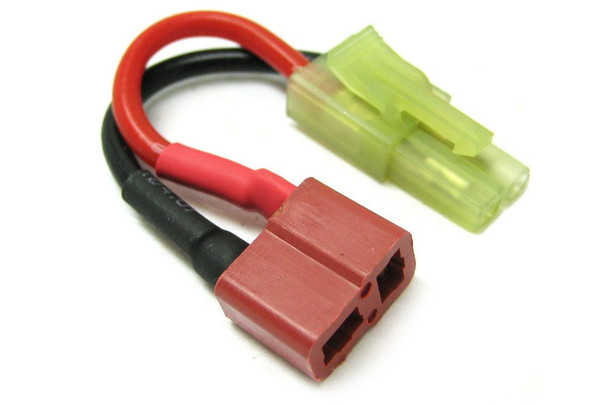

Etronix Male Micro Tamiya To Female Deans Adaptor ET0820 Connector Lead Cable

DO NOT USE WITH AIRSOFT as polarity does not match

ETRONIX MALE MICRO TAMIYA TO FEMALE DEANS ADAPTOR

Etronix Male Micro Tamiya To Female Deans Adaptor

Wiring

The usual wiring has the positive (red) wire running to the terminal with a square profile, and the negative (black) wire running to the half-circle, half-square terminal. This is true for both genders of connector. The female sockets are in a male housing and the male pins are in a female housing. The male pins (female housing) connector is usually on the battery side.

In electrical and electronics engineering, the convention is that gender refers to the metal contact parts of a connector in order to avoid ambiguity. A large number of hobbyist retailers selling these connectors refer to the gender of the plastic housing, which is against convention and can lead to errors.

In some cases, Mini-Tamiya connectors are wired in reverse polarity. This is often the case with airsoft guns, where the square profile terminal is the negative terminal and the rounded terminal is the positive terminal.^[3]
