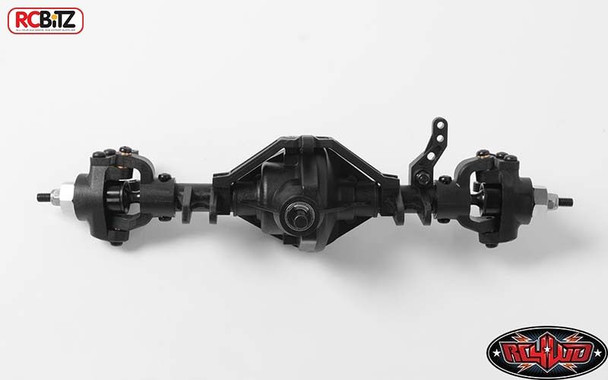

RC4WD D44 Plastic Complete FRONT Axle Axial SCX10 RC4WD Z-A0104 180mm C2X XVD

Additional Information -

Specifications:

• Durable Injection Molded Black Nylon
• CNC Machined Super Hardened Steel XVD Axles
• 45 Degrees Steering Angle
• Removable Diff Cover
• Double Locked Steering Arm Setup
• Steering Knuckles with 8 degrees of King Pin Angle

• Engineered and Manufactured by RC4WD
• 12mm Steel Wheel Hex
• 5mm Axle Output Shaft
• Weight: 6.75oz / 191g

What's Included:

• 1x RC4WD D44 Plastic Complete Front Axle

Required Parts:

• D44 Link Set for SCX10 CMS (SCX10 Width) (Z-S1072)
• RC4WD D44 Plastic Complete Rear Axle (Z-A0106)


Optional Parts:

• RC4WD Ballistic Fabrications D44 Axle Cover (Z-S1600)
• ARB Diff Cover for D44 Axle (Z-S1607)
• Differential Gear Set for D44 and Axial Axles (Z-G0079)
• D44 Narrow Front Axle Servo Mount (Z-S1742)
• D44 Narrow Front Axle Upper Link Mount (SCX10 Width) (Z-S1024)
• D44 Panhard Mount for SCX10 CMS (SCX10 Width) (Z-S1071)
• Heavy Duty Bevel Gear Set 43T/13T (Z-G0072)
• Heavy Duty Bevel Gear Set 36T/14T (Z-G0080)
• D44 Steering Knuckles (Z-S0955)


Replacement Parts:

• D44 Plastic Front Axle Replacement Parts (Z-A0119)
• Brass Knuckle Bushings for D44 Axle (8) (Z-S1716)
• XVD Axle Shafts for D44 Narrow Front Axle (SCX10 Width) (Z-S0989)
• RC4WD 12mm Axle Wheel Hexes (Z-S0239)
• Heavy Duty Bevel Gear Set 38T/13T (Z-G0071)
• Aluminum Diff Case for D44 and Axial Axles (Z-S1683)
• Heavy Duty Differential Locker (Z-S1682)
• RC4WD Assembly Combo Pack (Oil, Thread Lock, Grease) (Z-S1732)


Replacement Hardware:

• 2x M4 Lock Nuts (Z-S0620)
• 6x Metal Shield Bearing 5x11x4mm (Z-S0683)
• 4x Metal Shield Bearing 10x15x4mm (Z-S0837)
• 4x Steel Socket Head Cap Screw M1.6 X 6mm (Z-S1236)
• 1x Steel Button Head Cap Screws M3 x 12mm (Z-S0654)
• 1x Nylock Nuts M3 (Z-S0629)
• 1x M4 E-clip (Z-S0919)
• 2x Metal Shield Bearing 6x10x3mm (Z-S0680)
• 4x Button Head Self Tapping Screws M3 X 5mm (Black) (Z-S1689)
• 6x Button Head Self Tapping Screws M3 X 10mm (Black) (Z-S1578)
• 4x Socket Head Self Tapping Screws M2 X 6mm (Black) (Z-S1584)
• 1x Flat Head Self Tapping Screws M3 X 10mm (Black) (Z-S1568)
• 4x Button Head Self Tapping Screws M3 X 8mm (Black) (Z-S1576)

Notes:

• Fits Axial Jeep Wrangler Rubicon SCX10. But you will need Z-S1072, Z-S0923 and Z-A0106.

• Some components may come preassembled. Our assembly team works hard to provide you the best product possible, but it is always a good idea to ensure all hardware is tight and add additional grease to the gears as needed.
• The XVD unit allows for a large amount of steering. In order to prevent premature failure, it's recommended that you set your radio's steering EPA to limit the steering from being maxed out.

This product has been tested and approved by the Recon G6. It is Recon G6 Certified.
