RC4WD R4 Ultimate Scale Single Speed Transmission Z-U0031 for V8 Engine R 4 rc

Additional Information -

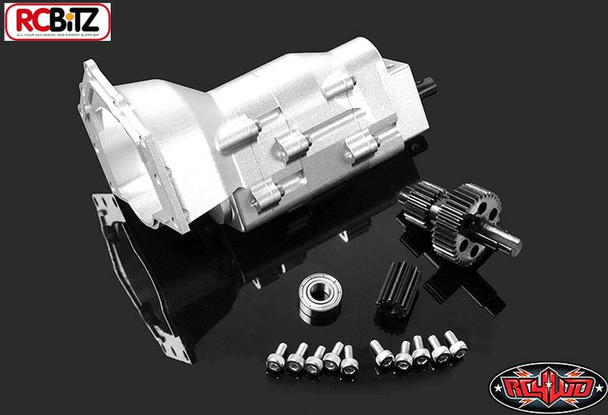

This is the RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission. This transmission will be sure to add a whole new level of realism to your build. Pair it with our RC4WD 1/10 V8 Engine to complete your build. This has been Officially Licensed by TCI Automotive and is only available from RC4WD and our Dealers.



Specifications:

• CNC Machined
• Billet Aluminum
• Body Width: 1.99in / 50.6mm
• Body Length: 3.07in / 78mm
• Body Height: 2.36in / 60mm
• Output Shaft Length: 0.33in / 8.5mm
• Output Shaft OD: 0.19in / 5mm
• Gear Ratio: 10.1:1
• Weight: 5.86oz / 166g

What's Included:

• 1x RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission
• 1x 14T 48P Pinion Gear
• 1x 36T / 20T 48P Gear
• 10x M2.5 x 5mm SHCS (Silver) (Z-S1207)
• 1x Metal Shield Bearing 5 x 11 x 4mm (Z-S0683)
• 1x TCI Transparent Decal Sheet
• 1x TCI Small Decal Sheet

• Replacement Gears for R4 Transmission (Z-G0067)

• 1/10 V8 Engine (Z-S1043)

Optional Parts:

• Trail Finder 2 V8 Engine Mounts (Z-S1239)
• Motor Mount for R4 Transmission (Z-S1627)


• 7x Metal Shield Bearing 5 x 11 x 4mm (Z-S0683)
• 1x Metal Shield Bearing 5 x 10 x 4mm (Z-S0686)
• 11x M2 X 6mm SHCS (Silver) (Z-S0994)

• Fits Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc") with Optional Engine Mounts
• Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) with Optional Engine Mounts
• Fits Trail Finder 2 RTR w/Mojave Body Set (Z-RTR0019 "Disc") with Optional Engine Mounts
• Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024) with Optional Engine Mounts
• This product can't be installed on TF2 with the 3/4 link (Z-S0603) / (Z-S0565)

Press Information:

• Click here to see how this product was used on a Class 1 Winner's Jeep Wrangler from the ECSC16.

Instruction Manual:

• Click here to download RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission & V8 Engine Assembly Instructions

• Click here to download TF2 & V8 Engine Fitting Instructions

TCI Automotive is a registered trademark of COMP Performance Group. The TCI Automotive logo is properly of COMP Performance Group and used under license to RC4WD.
