RC4WD

RC4WD SCS Gearbox Monster Drop Transmission Z-U0038 9.1:1 CNC Billet Aluminium

(No reviews yet) Write a Review

SKU:: Z-U0038
UPC:: 639302592960
MPN:

RRP £149.49

Current Stock:

Out of Stock - On Order with Supplier

Description
0 Reviews

Description

Additional Information -

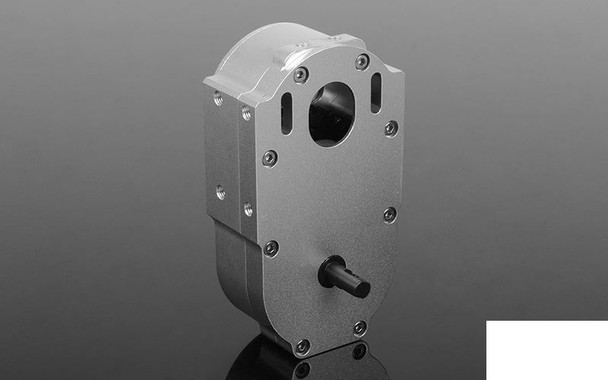

RC4WD SCS Gearbox Monster Drop Transmission

These are the all new Licensed SCS Gearbox Monster Drop Transmissions. These have been Officially Licensed by the SCS Gearbox company and are only available from RC4WD and our Dealers.

Specifications:

CNC Machined
Billet Aluminum
Body Width: 1.65in / 41.9mm
Body Length: 2.99in / 76.1mm
Body Height: 2.36in / 60mm
Output Shaft Length: 0.47in / 12.0mm
Output Shaft OD: 0.19in / 5mm
Gear Ratio: 9.1:1
Weight: 4.69oz / 132.9g

What's Included:

1x RC4WD SCS Gearbox Monster Drop Transmission
1x Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)
1x 13 Tooth 32 Pitch Steel Pinion Gear (Black)
1x SCS Decal Sheet

Optional Parts:

13 Tooth 32 Pitch Steel Pinion Gear (Z-G0020)
12t 32p Hardened Steel Pinion Gear (Z-G0065)
14t 32p Hardened Steel Pinion Gear (Z-S0430)
15t 32p Hardened Steel Pinion Gear (Z-G0014)

Notes:

Do not use a pinion larger than 17t 32p. A larger pinion me result in damage to the interior of the case.
We recommend using RC4WD 32p gears for this transmission. We cannot guarantee the pitch of other brands' gears which may cause damage to the spur gear.

Instruction Manual:
