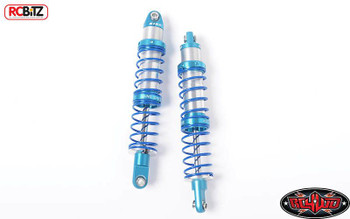

RC4WD King Off-Road Dual Spring Shocks 100mm MEDIUM OD Large Bore Z-D0063 RC

Additional Information -

This is the all new Licensed Dual Spring Shock to hit the market. Licensed from King Off-Road shocks. These new shocks feature a complete new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks.

Now in a larger body diameter.



Specifications:

• Machined Billet Aluminum
• King on Top and Retainer Ring
• Dual Spring Design
• Steel Rod End Ball
• Ball Width: 0.25in / 6.3mm
• Ball Lip Diameter: 0.19in / 4.8mm
• Ball ID: 0.12im / 3mm
• Hole to Hole (Compressed): 2.75in / 70mm
• Hole to Hole (Uncompressed): 3.93in /100mm
• Overall Length: 4.3in / 109.3mm
• Travel Length: 1.18in / 30mm
• Shock Body OD: 0.49in / 12.6mm
• Shaft OD: 0.15in / 3.97mm
• Spring Body OD: 0.66in / 16.98mm
• Spring Body ID: 0.58in / 14.8mm
• Each Weight: 0.91oz / 26g

What's Included:

• 2x RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD)
• 1x King Decal Sheet

• RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
• RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
• RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD) (Z-D0065)
• RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD) (Z-D0067)

• Rebuild Kit for King Off-Road Dual Spring Shocks (Z-S1263)
• Replacement Shock Shafts for King Dual Spring Shocks (100mm) (Z-S1279)
• RC4WD Shock Cap for Top of King Offroad Shocks (Z-S1280)
• RC4WD Lower, Center and Threaded Spring Retainer for King Offroad Shocks (Z-S1282)
• RC4WD 100mm King Off-Road Dual Spring Shocks Spring Assortment (Z-S1289)

• Fits Boyer 1/10 Scale Truggy RTR (Z-RTR0006) (Front)
• Fits Boyer 1/10 Scale Truggy Kit (Front)
• Fits Z-K0001 (Front / Rear), (Z-RTR0019 "Disc") (Rear), (Z-RTR0024) ,(Z-K0042 "Disc") (Z-K0049) (Rear),But you need to Z-S0741 and Z-S0058 to cooperate
• Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes

• Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
