ARB Special Edition T-Rex 60 Front Rear Plastic Complete Axle ALUMINIUM Knuckles

(No reviews yet) Write a Review
SKU:
Z-A0052
UPC:
013964451382
  • ARB Special Edition T-Rex 60 Front Rear Plastic Complete Axle ALUMINIUM Knuckles
  • ARB Special Edition T-Rex 60 Front Rear Plastic Complete Axle ALUMINIUM Knuckles
  • ARB Special Edition T-Rex 60 Front Rear Plastic Complete Axle ALUMINIUM Knuckles
  • ARB Special Edition T-Rex 60 Front Rear Plastic Complete Axle ALUMINIUM Knuckles
  • ARB Special Edition T-Rex 60 Front Rear Plastic Complete Axle ALUMINIUM Knuckles
  • ARB Special Edition T-Rex 60 Front Rear Plastic Complete Axle ALUMINIUM Knuckles
MSRP: $180.18
RRP $128.70
— You save $51.48

Description

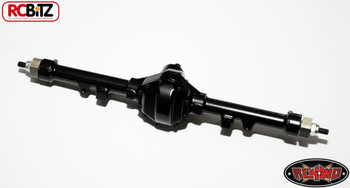

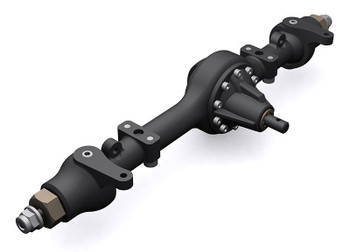

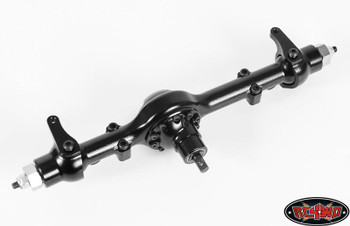

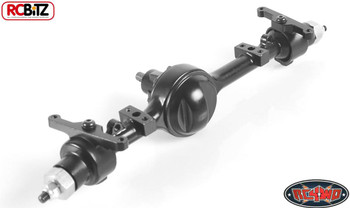

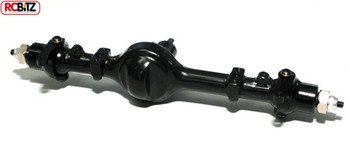

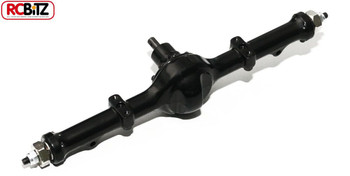

ARB Special Edition T-Rex 60 Scale Plastic Front & Rear Complete Axle

This Special Edition ARB Axle set are very realisic looking and also a great affordable set of plastic axles. Comes with the ARB covers, and Aluminum steering knuckles. Designed for both 1.9 or 2.2 size truck! Stock plastic version are Z-A0076.

Specifications:

  • ABS Plastic housing
  • Hardened steel spool gear
  • ARB removable diff cover
  • 5mm axle output shaft
  • Heavy duty axle for maximum steering
  • Aluminum steering knuckles
  • Full ball bearings

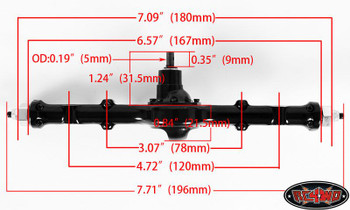

  • Width: 190mm/8inch (Hex to hex)
  • Gear Ratio: 2.5:1
  • Designed for 1:10 to 1:16 scale truck!
  • Hex to Hex Width: 185mm / 7.28"

  • Pin to Pin Width: 174mm /6.85 "

  • Pumpkin Height: 39mm /1.53 "

  • Output Shaft OD: 5mm / 0.19"

  • Weight (Front): 181 g /6.4oz

  • Leaf Mount Width:82.5 mm /3.24 "
  • Weight (Reare): 153 g /5.4oz
  • Created based on Katan (UK) original design

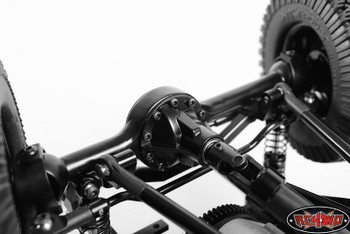

Customers custom truck using ARB Special Edition axles
Reviews on the Rex 60 Plastic Axles.

Click here to read a review on Scale4x4 or Download a PDF version here (560KB)

Click here to read a review about the prototpye axles

What's included:

  • 1x ARB Special Edition T-Rex 60 Plastic Front Axle
  • 1x ARB Special Edition T-Rex 60 Plastic Rear Axle
  • 4x 4 Link and Shock mounts
  • 8x M3 Hardware

Replacement Parts:

  • 2x Set of Alum Lower 4 Links Mounts (Part # Z-S0542)
  • 1x Steel straight axle (Part # Z-S0433)
  • 1x Heavy duty axle shaft front (Left & Right) (Part # Z-S0478)
  • 2x Bevel Shaft (Part # Z-S0479)
  • 2x Heavy Duty Spool gear (Part # Z-S0200)

Hop up parts:

  • Billet steel servo mounts (Z-S0562) (this is a recommended upgrade)**
  • CNC machined alum front axle housing (Part # Z-A0050)
  • CNC machined alum rear axle housing (Part # Z-A0051)
  • CNC machined alum steering knuckles (Part # Z-S0569)
  • Aluminum Axle C (Part # Z-S0576)
  • XVD front axle set (Part # Z-S0092) Steering Kit is part # Z-S0022
  • Aluminum Diff covers (Part #' Z-S0406)
  • ARB Diff cover (Part# Z-S0220)

Important Note:

  • This axle is designed to work with R2 black transmission (Z-U0009), R2 Silver (Z-U0011) or SCX10, AX10 and Wraith transmission. You do have to purchase a special Punisher Shaft II with 5mm holes.
  • The gears don't come pre-lubed. You will need to remove the front cover and use your preferred lubrication or our GreaseGrease
  • To get more width, you can use 12mm widener (Z-S0407)
ARB is a registered trademark of the ARB company. The ARB logo is property of ARB.
